Re: my first 303 clone

It is the ancestor of the x0xb0x. I think the x0xb0x has changed the life of many people. Ah, ah, 303 subscribers, you don't have to subscribe anymore.
by nologin
Fri Jan 15, 2021 9:08 am
Forum: Music Tech DIY
Topic: KORG35 filter - voltage conversion and transistors
Replies: 26
Views: 2025

Re: KORG35 filter - voltage conversion and transistors

Other question, i still have 2 clones of korg 35 left. Nobody made a PCB to have a 35 filter, for modular? On which we could graft the korg 35 clones. Or a vero board? It doesn't exist? I searched on internet and saw only OTA clones...
by nologin
Mon Jan 04, 2021 8:34 am
Forum: Music Tech DIY
Topic: KORG35 filter - voltage conversion and transistors
Replies: 26
Views: 2025

Re: KORG35 filter - voltage conversion and transistors

Hi, i have an MS20 korg 35, KLM127, the auto-oscillating filter too much, it's bad for the synthesizer play. It has an abnormal behaviour, it's not much, but i find it annoying ... I compared against 2 other MS20 equipped with Korg 35, here is OK... Mine itsn't OK. I replaced the Korg 35 by DIY clon...
by nologin
Tue Dec 29, 2020 2:49 pm
Forum: Music Tech DIY
Topic: MB909 alias TNINER alias TR9090
Replies: 4
Views: 199

Re: MB909 alias TNINER alias TR9090

Hi Alain, i remember well your MB606 on the anafrog forum. My bug first appeared about a year ago and worked fine for 6 months after that. For the last few months the problem has persisted. It's possible that a cherry swich is messing up, i hope that's it. But if i remember correctly it is not alway...
by nologin
Tue Dec 29, 2020 4:44 am
Forum: Music Tech DIY
Topic: MB909 alias TNINER alias TR9090
Replies: 4
Views: 199

Re: MB909 alias TNINER alias TR9090

Everything works, except that it randomly changes the pattern on its own. It's like MB808 but more elaborate. It has nothing to do with nava, the only thing in common is the instruments, it's a much more powerful sequencer. MB909 can sequence several drum machines and synthesizers simultaneously. I'...
by nologin
Mon Dec 28, 2020 4:31 pm
Forum: Music Tech DIY
Topic: Mouser is great but i hate it !
Replies: 53
Views: 1315

Re: Mouser is great but i hate it !

Mouser is a professional site, often a little expensive, but with a lot of choice. And above all the components are of high quality. The good thing about them is that they have a head office in my country, yet they are an American supplier, in case of problems with an order, i always have someone to...
by nologin
Mon Dec 28, 2020 3:14 pm
Forum: Music Tech DIY
Topic: MB909 alias TNINER alias TR9090
Replies: 4
Views: 199

MB909 alias TNINER alias TR9090

Hi, maybe you remember MB909 which had several names, it was introspectiv 9090 with a midibox sequencer which had an interface resembling the TR909. Mine worked well for several years, but it was difficult to get something that worked well, it took weeks of work, you can't count in hours. ;) Mine is...
by nologin
Mon Dec 07, 2020 4:59 am
Forum: Music Tech DIY
Topic: Steda Electronics SR-909 Full kit for $909
Replies: 104
Views: 12161

Re: Steda Electronics SR-909 Full kit for $909 last 3 days!

Hi, you're Swiss and you speak French? I know someone in Switzerland who does a lot of DIY.
by nologin
Thu Oct 29, 2020 1:18 pm
Forum: Music Tech DIY
Topic: Where's knobs for 4mm shaft?
Replies: 5
Views: 149

Re: Where's knobs for 4mm shaft?

I am missing less than 10 knobs. I'm thinking of buying those from aliexpress as i can't find a better one. Sifam does too. The ideal would be shaft with the flat, not screwed.
by nologin
Wed Oct 28, 2020 4:12 pm
Forum: Music Tech DIY
Topic: Where's knobs for 4mm shaft?
Replies: 5
Views: 149

Where's knobs for 4mm shaft?

Hi i've been searching for some knobs for PC16BU potentiometer: https://www.omeg.co.uk/wp-content/uploads/2020/02/PC16BU.pdf The problem is that it's a 4mm shaft, it's not common. I bought cheap, a soundtracs mixer on which some buttons are missing... The ideal would be to find adaptable knobs from ...
by nologin
Thu May 28, 2020 7:41 am
Forum: Music Tech DIY
Topic: DIY - Elektor Vocoder - General Build Thread
Replies: 391
Views: 27337

Re: DIY - Elektor Vocoder - General Build Thread

:hail: :hail: :hail: :hail: :hail:
I had watched the whole thread, i don't know why i didn't seen.
by nologin
Wed May 27, 2020 3:39 pm
Forum: Music Tech DIY
Topic: DIY - Elektor Vocoder - General Build Thread
Replies: 391
Views: 27337

Re: DIY - Elektor Vocoder - General Build Thread

There's no one who can tell me about R42 and R36? Because i don't know how many ohms they are, i can't find them in the BOM...


by nologin
Wed May 27, 2020 3:15 pm
Forum: Music Tech DIY
Topic: dead TT303 v1
Replies: 3
Views: 252

Re: dead TT303 v1

You should buy the RE-303 PCBs, with a bit of dremel the case will fit, you also have the knobz you can get. That's a good excuse to build a RE-303.
by nologin
Sun May 24, 2020 4:48 am
Forum: Music Tech DIY
Topic: E-Licktronic Nava 909 clone
Replies: 136
Views: 24211

Re: E-Licktronic Nava 909 clone

Since the time has passed and i've made something different out of it. I removed the fuzz but installed a monotron VCF on the master output instead. And i added pitch and drive mods on the toms. But i've built one for myself and i won't build another. Because i think it's pretty risky to try to make...
by nologin
Mon May 11, 2020 4:07 am
Forum: Music Tech DIY
Topic: [Build Thread] Jasper, an EDP Wasp Clone
Replies: 863
Views: 94537

Re: [Build Thread] Jasper, an EDP Wasp Clone

Wouldn't your switch be a momentary one? Or a faulty on/on. Otherwise there's a problem with the envelope
by nologin
Fri May 08, 2020 2:34 am
Forum: Music Tech DIY
Topic: x0xb0x mod help needed
Replies: 4
Views: 235

Re: x0xb0x mod help needed

Here: http://www.ladyada.net/wiki/x0x/mods

bass boost: https://www.subatomicglue.com/x0xl0g/mo ... _boost_mod

Btw slide timing, if we do the mod in such a way that we can really hear, a lower pitch of the slide, irremediably the tune of the VCO will be a bit lower.
by nologin
Thu May 07, 2020 2:23 pm
Forum: Music Tech DIY
Topic: Debugging Steiner VCF build. Help please (solved)
Replies: 15
Views: 696

Re: Help debugging Steiner VCF build, please

Hi never built steiner parker, but pay attention to a small detail, there are 2 kinds of 2N2222 with different pinout. There's 2N2222 et P2N2222, maybe this.
by nologin
Sun May 03, 2020 3:58 pm
Forum: Music Tech DIY
Topic: x0xb0x VCO2 mod board wiring?!
Replies: 7
Views: 460

Re: x0xb0x VCO2 mod board wiring?!

Has anyone got one of the pcb's? I'd love to do that mod to my 2nd x0x...it might help boot me back up to finishing it! I am working on a 2nd VCO for x0xb0x, but it will be different, with an additional VCO level potentiometer, a fine tune and sync: https://www.youtube.com/watch?v=10ydEgjDAcs I wil...
by nologin
Wed Apr 29, 2020 2:27 pm
Forum: Music Tech DIY
Topic: DIY - Elektor Vocoder - General Build Thread
Replies: 391
Views: 27337

Re: DIY - Elektor Vocoder - General Build Thread

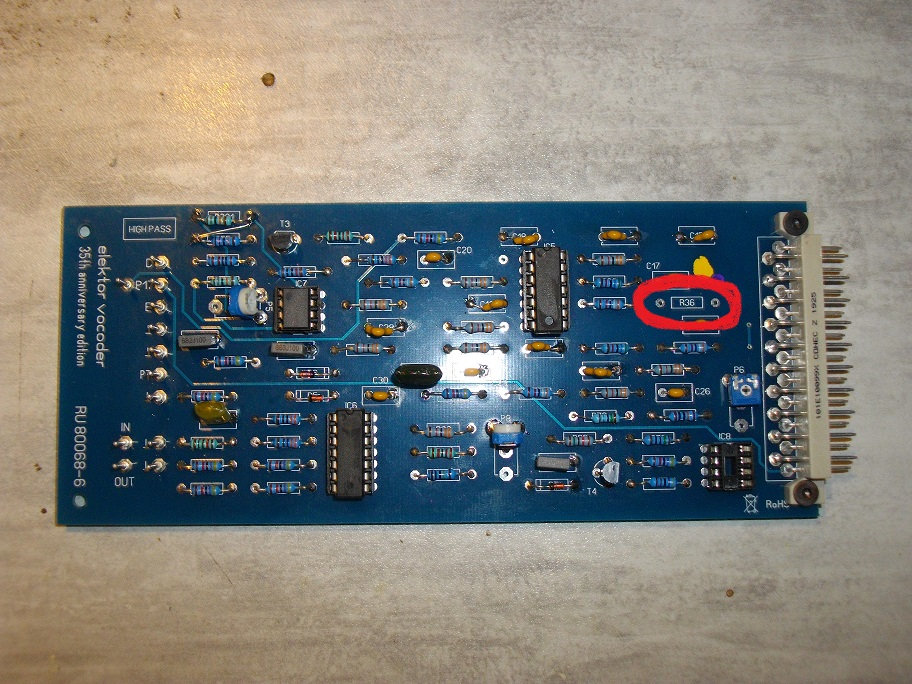

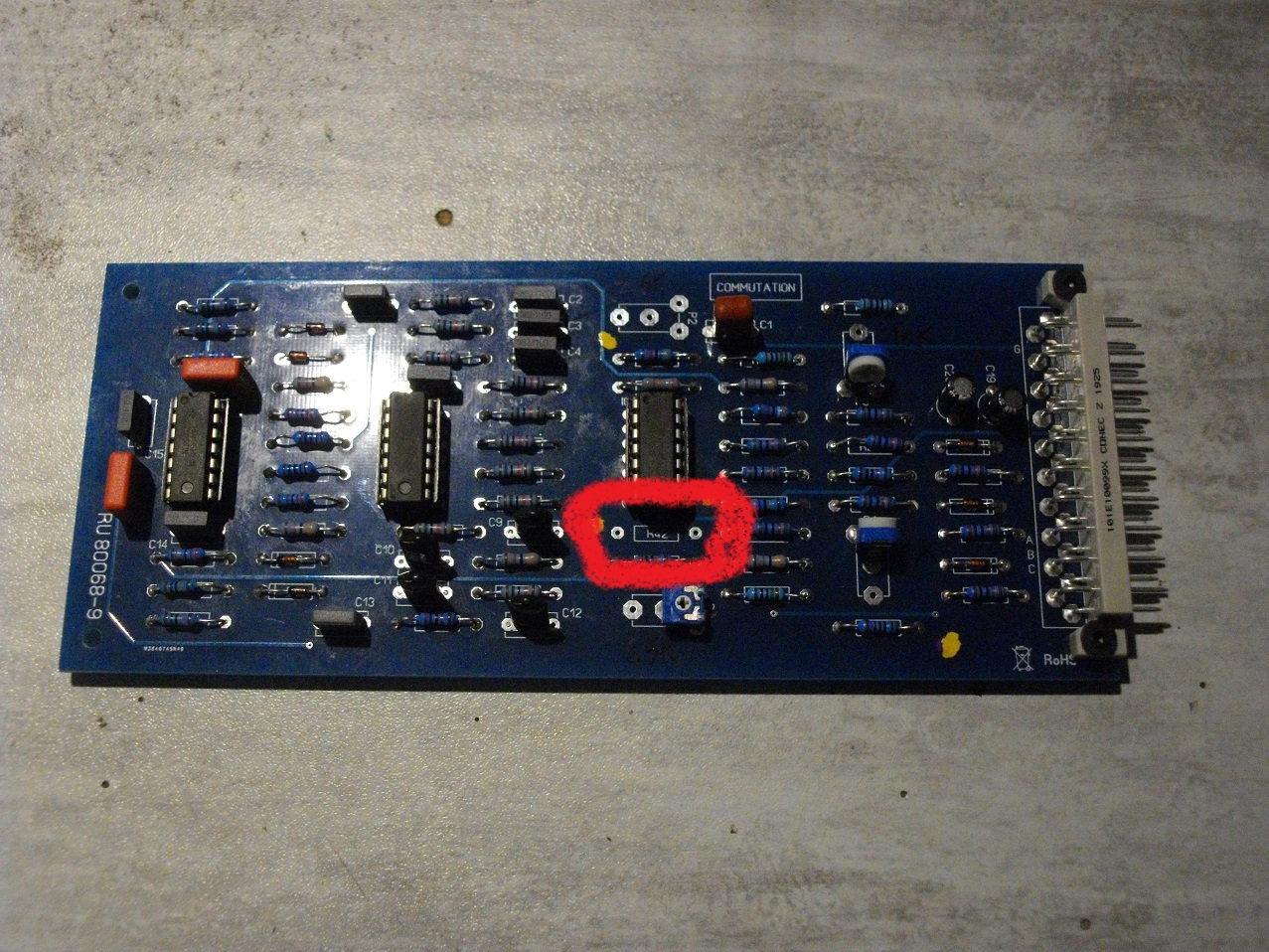

Hello, there are 2 resistors that i don't see in the BOM. R42 on the switching board and R36 on the highpass board.
by nologin
Tue Apr 14, 2020 2:59 pm
Forum: Music Tech DIY
Topic: DIY - Elektor Vocoder - General Build Thread
Replies: 391
Views: 27337

Re: DIY - Elektor Vocoder - General Build Thread

My problem solved, my -5VDC power problem was because of 7915 that were labeled 7905. It's the first time in my life that I've seen this... It's ST they're labeled L7905CV 99205. Replaced by a motorola MC7905CT, problem solved. But i wonder how it's possible that a manufacturer could make such a mis...
by nologin
Thu Feb 20, 2020 12:33 pm
Forum: Music Tech DIY
Topic: DIY - Elektor Vocoder - General Build Thread
Replies: 391
Views: 27337

Re: DIY - Elektor Vocoder - General Build Thread

Yes KSS, if i had done that reversal 78xx/79xx, regulators would have burned out.
Here, i've got this at IC20 and no short circuits:

by nologin
Wed Feb 19, 2020 5:52 pm
Forum: Music Tech DIY
Topic: DIY - Elektor Vocoder - General Build Thread
Replies: 391
Views: 27337

Re: DIY - Elektor Vocoder - General Build Thread

Yes, i removed it and soldered another, 7905, still the same problem. :doh: I'm going to try one on another circuit, maybe they are faulty. :hmm: It's strange.
by nologin
Wed Feb 19, 2020 11:01 am
Forum: Music Tech DIY
Topic: DIY - Elektor Vocoder - General Build Thread
Replies: 391
Views: 27337

Re: DIY - Elektor Vocoder - General Build Thread

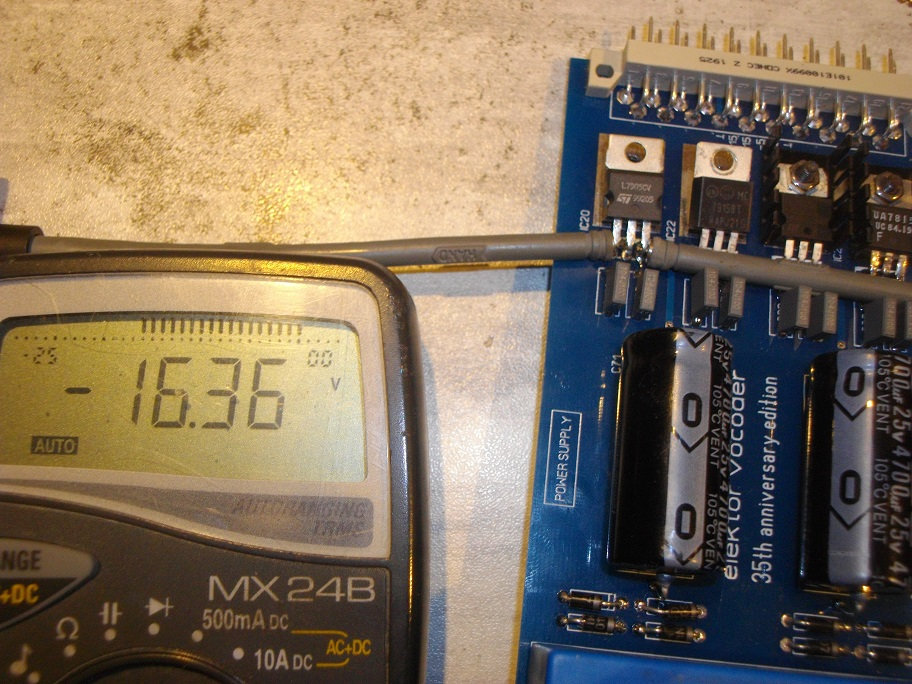

Hi, so far i've only built that power supply, i've got a problem. When t ordered the BOM to reichelt, the 4700uF 40V capacitors were unavailable. I soldered 4700uF 25V instead i thought it would be OK, i must have been wrong. :doh: IC19 is ok, +15V IC21 is ok, +5V IC22 is ok, -15V IC20, is bad, and ...
by nologin
Wed Jan 22, 2020 12:59 pm
Forum: Music Tech DIY
Topic: DIY - Elektor Vocoder - General Build Thread
Replies: 391
Views: 27337

Re: DIY - Elektor Vocoder - General Build Thread

I just ordered all the components to build it. (I had bought the PCBs last year, built was pending). I should start the year well by building this vocoder i've been dreaming about for a long time. :tu:
