Post by mome rath » Sun May 25, 2014 11:35 pm

Phetus

looks OK to me!
soundcloud, dear friends

good trader cred
instagraM
guest wrote:
Fri Jan 03, 2020 2:45 pm
basically, as the dude put it "no walter, youre not wrong, youre just an asshole".
zoogoo wrote: your stupid

User avatar
Phetus
Wiggling with Experience
Posts: 293
Joined: Mon Mar 04, 2013 4:33 pm
Location: Berlin

Post by Phetus » Mon May 26, 2014 4:22 am

mome rath wrote:Phetus

looks OK to me!
Thanks!
It's a bad picture. I was impatient and pulled the screen of while it was still wet, so the paint got on the areas it shouldn't be. I wiped it off, but there's still some residue. Might have to go at it with spirit at some point...

User avatar
Synesthesia
Northern Light Modular
Posts: 1569
Joined: Wed Sep 02, 2009 8:35 am
Location: Limerick, Ireland
Contact:

Post by Synesthesia » Mon May 26, 2014 5:27 am

Banana to euro converter \ Mult.

first go at salt etching : )

User avatar
Reality Checkpoint
Confused By Electricity
Posts: 3936
Joined: Wed Apr 15, 2009 4:06 am
Location: Al Aqsa

Post by Reality Checkpoint » Mon May 26, 2014 6:40 am

^^^

That looks great!

User avatar
Tombola
Super Deluxe Wiggler
Posts: 1879
Joined: Sun Jan 23, 2011 11:33 am
Location: London, England

Post by Tombola » Mon May 26, 2014 11:36 am

Phetus wrote: Built this over the weekend. First DIY kit. The panels turned out a bit rough, but it works, WHICH IS A PRETTY BIG FUCKING SUCCESS IN MY OPINION. :tu:

Next up: j3rk Fadr/circle jerk/Neuron diff :mrgreen:
Great job!

User avatar
horstronic
Super Deluxe Wiggler
Posts: 1049
Joined: Thu Aug 08, 2013 5:35 am
Location: Germany

Post by horstronic » Mon May 26, 2014 6:57 pm

I had some spare time over the last week so I built two panels to connect the two halfs of my eurorack suitcase (using these 8mm LEDs that I never found a proper use for 8_) ) and a buffered multiple, based on a schematic from daverj, posted in this thread:
viewtopic.php?t=74951&postdays=0&postorder=asc&start=40



I was in a bit of a hurry, so the holes on the buffmult are not perfectly in place which I kind of regret now... But it's not too bad I guess.

User avatar
horstronic
Super Deluxe Wiggler
Posts: 1049
Joined: Thu Aug 08, 2013 5:35 am
Location: Germany

Post by horstronic » Mon May 26, 2014 6:59 pm

Synesthesia wrote:Banana to euro converter \ Mult.

first go at salt etching : )
I really need to check that out soon!
Looks pretty nice!

User avatar
c1t1zen
Wiggling with Experience
Posts: 295
Joined: Mon Jan 16, 2012 10:38 am

Post by c1t1zen » Mon May 26, 2014 10:07 pm

Cool etching, need to look that up. I'd do some hand painting on top.
That dual Wogglebug a few pages back is super nice. You guys/gals are inspiring me tons. :party:

User avatar
tragedybysyntax
Banned until Restitution Made
Posts: 2913
Joined: Sat Jun 16, 2007 11:39 am

Post by tragedybysyntax » Mon May 26, 2014 10:46 pm

Thanks for the kind words on the dual woggle guys!!! I'll post another pic once most of the suitcase is done :)
- [ Custom Metalwork ] -

User avatar
fonik
Super Deluxe Wiggler
Posts: 3328
Joined: Fri Sep 19, 2008 5:54 am
Location: Germany
Contact:

Post by fonik » Tue May 27, 2014 2:14 am

not strictly synth DIY, nevertheless, the SU700 provides filters and LFOs for each of it's 40 tracks/channels... and i am posting here, since this might be of interest for potential SU700 users here on the board.

anyways, last night i managed to fit a 4GB SCSI HDD inside the SU700 i bought cheap off ebay! awesome 4GB on the internal drive for this 68MB sampler now.
(BTW i will have to add a switch to turn the HDD off when not in use, and new encoders are on their way to me - so there is still some work to do on this nice machine)

all i had to do was to mount the HDD to the blind panel of the I/O expansion slot, and to connect the HDD to the SU700 PSU board (there is a header carrying 12V, 5V, GND for the I/O expansion already). done.

Big Boss at fonitronik.de
Tech Buddy at Random*Source/Serge

User avatar
falafelbiels
still learning to wiggle
Posts: 4356
Joined: Tue Aug 04, 2009 7:15 am
Location: Rotterdamm son

Post by falafelbiels » Tue May 27, 2014 10:35 am

Does that run on piezos? Nice.

User avatar
fonik
Super Deluxe Wiggler
Posts: 3328
Joined: Fri Sep 19, 2008 5:54 am
Location: Germany
Contact:

Post by fonik » Tue May 27, 2014 11:09 am

falafelbiels wrote:Does that run on piezos? Nice.
nice indeed. feels very good to play the bottons. this technique gives you good control ofer velocity.
Big Boss at fonitronik.de
Tech Buddy at Random*Source/Serge

User avatar
falafelbiels
still learning to wiggle
Posts: 4356
Joined: Tue Aug 04, 2009 7:15 am
Location: Rotterdamm son

Post by falafelbiels » Tue May 27, 2014 11:24 am

I love samplers and the thing has always seemed very interesting to me. I's just that I have also used encoders on another Yamaha sampler before and well yeah...
Not buying any more samplers, but the HD is a very good idea indeed.

User avatar
fonik
Super Deluxe Wiggler
Posts: 3328
Joined: Fri Sep 19, 2008 5:54 am
Location: Germany
Contact:

Post by fonik » Tue May 27, 2014 12:43 pm

the encoders are on their way already :hihi:
Big Boss at fonitronik.de
Tech Buddy at Random*Source/Serge

User avatar
falafelbiels
still learning to wiggle
Posts: 4356
Joined: Tue Aug 04, 2009 7:15 am
Location: Rotterdamm son

Post by falafelbiels » Tue May 27, 2014 1:15 pm

Did you order more spares? Maybe even more? Spare spares?

User avatar
fonik
Super Deluxe Wiggler
Posts: 3328
Joined: Fri Sep 19, 2008 5:54 am
Location: Germany
Contact:

Post by fonik » Tue May 27, 2014 5:34 pm

no. i get the original yamaha from a yamaha distributor and they are about 6.50EUR/ea. and i need 12. so i did not order any more spares. spare spares...
(i have not seen them yet, however, i believe they are obsolete panasonics)
Big Boss at fonitronik.de
Tech Buddy at Random*Source/Serge

User avatar
snaper
Ultra Wiggler
Posts: 993
Joined: Mon Feb 10, 2014 12:29 am
Location: Magyarország

Post by snaper » Wed May 28, 2014 12:07 am

mome rath wrote:i've gone bonkers with acrylic and i'll never look back

:love:

That is awesome!

User avatar
far
Wiggling with Experience
Posts: 384
Joined: Fri Jul 26, 2013 7:34 am
Location: Perth

Post by far » Sun Jun 01, 2014 7:00 am

A passive 8 in 8 out mutes for triggers.
I made it cause I'm keen to chop triggers for drums and envelopes via switches.




No sooner had I finished and had a play that I wished it had an led above each switch. I'm a noob at diy and loving it but led's are beyond my capabilities at the mo. I'm happy with it for now.

And yeah it's housed in between 2 * 45's haha.

User avatar
sonicwarrior
Super Deluxe Wiggler
Posts: 3815
Joined: Tue Sep 29, 2009 3:36 pm
Location: Cologne, Germany

Post by sonicwarrior » Sun Jun 01, 2014 7:28 am

far wrote:led's are beyond my capabilities at the mo.
You are searching for an LED driver. Some possibilities are described by Ray Wilson here:
http://www.musicfromouterspace.com/anal ... ivers.html
Last edited by sonicwarrior on Sun Jun 01, 2014 8:33 am, edited 1 time in total.
Soundcloud
For sale: Jürgen Haible Tau Phaser (MOTM format)

User avatar
eolianmollisol
Wiggling with Experience
Posts: 440
Joined: Sun Mar 30, 2014 10:22 am
Location: Iowa

Post by eolianmollisol » Sun Jun 01, 2014 7:48 am

far, thats a pretty sweet idea with the 45s...


heres my first DIY module. EKO by synthrotek. Pretty basic, but it's quite a bit of fun. Fabricated the panel myself, nothing fancy there either, pretty utilitarian :lol: ...It's meant for eurorack, so I had to drill into the PCB to be able to attach it to the panel, and use flying wires for the power connection. Works spiffy tho :guinness:

soils sustain life

User avatar
far
Wiggling with Experience
Posts: 384
Joined: Fri Jul 26, 2013 7:34 am
Location: Perth

Post by far » Sun Jun 01, 2014 8:13 am

sonicwarrior wrote:
far wrote:led's are beyond my capabilities at the mo.
You are searching for a LED driver. Some possibilities are described by Ray Wilson here:
http://www.musicfromouterspace.com/anal ... ivers.html
cheers, need to think about this for a bit but I think I can make it work.

User avatar
falafelbiels
still learning to wiggle
Posts: 4356
Joined: Tue Aug 04, 2009 7:15 am
Location: Rotterdamm son

Post by falafelbiels » Sun Jun 01, 2014 9:13 am

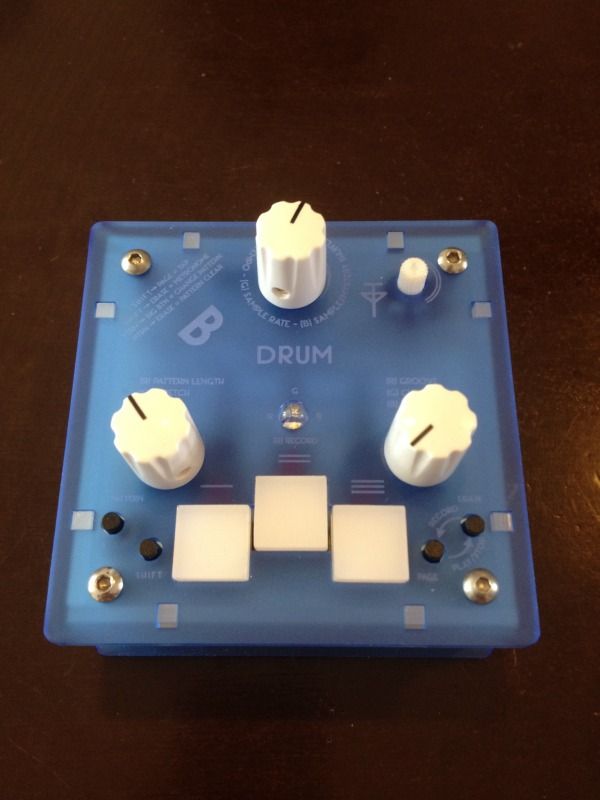

I do enjoy a bit of little kit building every now and then. This one is pretty cool, all the bad stuff in digital drums. If you like bleepdrum you may just love this. Rather affordable too!


click

User avatar
mxmxmx
Super Deluxe Wiggler
Posts: 2243
Joined: Thu May 31, 2012 1:54 am
Location: berlin

Post by mxmxmx » Sun Jun 01, 2014 11:12 am

a little clock randomizer/distributor ("4xclk"):






User avatar
fracinfrucer
Wiggling with Experience
Posts: 337
Joined: Thu Nov 13, 2008 4:55 pm
Location: Columbus, OH USA

Post by fracinfrucer » Sun Jun 01, 2014 3:16 pm

Well, all these years (or :goo: 's) later I finally have something to put in this thread! Thanks to a last minute mouser order arriving yesterday I was able to finish all three of my first three builds EVER today. :party: :hihi: That's a MOTM 390, 490 and 800. VCO and VCA are, of course, up next!! :sb:

Image[/img]
Last edited by fracinfrucer on Fri Jun 13, 2014 1:35 pm, edited 1 time in total.

User avatar
elmegil
Super Deluxe Wiggler
Posts: 3007
Joined: Sun Apr 29, 2012 2:57 pm
Location: Chicago

Post by elmegil » Sun Jun 01, 2014 4:23 pm

Congratulations all around!
