Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by Cablebasher » Fri Nov 06, 2020 8:10 am

Hey guys

So I have finally got to the krautrock phaser in my back log.

Seems like a lot to watch out for but with this thread and the LED man site I am ready

I intend to but it in a Hammond 1550G enclosure with a Yamaha PA20 as I don’t want to deal with mains power.

One question, does anyone have a part number for the rotary pot for the stages?

Cheers as always.

manymachines
Learning to Wiggle
Posts: 8
Joined: Tue Oct 20, 2020 3:14 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by manymachines » Wed Nov 11, 2020 11:45 am

I used a dpdt toggle wired like this for the stages if that's any help?

https://www.talkbass.com/attachments/sp3t-gif.1739206/

User avatar
FactoryDefault
Common Wiggler
Posts: 172
Joined: Tue Mar 29, 2016 12:37 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by FactoryDefault » Wed Nov 11, 2020 12:38 pm

manymachines wrote:
Wed Nov 11, 2020 11:45 am
I used a dpdt toggle wired like this for the stages if that's any help?

https://www.talkbass.com/attachments/sp3t-gif.1739206/
Me too. Get a dpdt on-on-on toggle off you go this route.
I used this one: 100DP6T1B1M1QEH

If you really wanted to go rotary, you only need 1 pole and 3 positions, so the switches in the jasper bom will work, since they have the ring that you can move to change the number of positions.

Cablebasher
Wiggling with Experience
Posts: 434
Joined: Sat Aug 03, 2013 6:51 am
Location: England, UK.

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by Cablebasher » Wed Nov 11, 2020 3:15 pm

Cheers for the info guys.

I will go toggle switch. Takes up less space in my enclosure and easier to wire!

Thanks as always.

manymachines
Learning to Wiggle
Posts: 8
Joined: Tue Oct 20, 2020 3:14 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by manymachines » Thu Nov 12, 2020 12:08 pm

Hi All,

finally got this boxed today. Normally I hate boxing effects but I decided to go big (1550G) and it paid off, no hitches and plenty of room to work ;]

This is such a great sounding thing, respect to JH! RIP




User avatar
FactoryDefault
Common Wiggler
Posts: 172
Joined: Tue Mar 29, 2016 12:37 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by FactoryDefault » Thu Nov 12, 2020 1:00 pm

manymachines wrote:
Thu Nov 12, 2020 12:08 pm
Hi All,

finally got this boxed today. Normally I hate boxing effects but I decided to go big (1550G) and it paid off, no hitches and plenty of room to work ;]

This is such a great sounding thing, respect to JH! RIP
Manymachines, That looks awesome!

Agreed. This phaser sounds sooo good. Since I finished the basic build it’s been hard for me to finish putting it in its enclosure. Every time I sit down to work on it I end up noodling with it instead of crimping cables.

manymachines
Learning to Wiggle
Posts: 8
Joined: Tue Oct 20, 2020 3:14 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by manymachines » Fri Nov 13, 2020 6:54 am

thanks!

i know what you mean, I noticed after I posted this that the status LED has stopped working, I guess I mangled it a bit while boxing but I'm having so much fun with this I can't be bothered to open it up and fix it right now ;]

Cablebasher
Wiggling with Experience
Posts: 434
Joined: Sat Aug 03, 2013 6:51 am
Location: England, UK.

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by Cablebasher » Sun Nov 22, 2020 3:43 am

Hey Many machines,

where did you get the bulb cover /Cap thing?

And those knobs.

Very nice.

I will also be putting mine in a 1550G.

Cheers as always.

manymachines
Learning to Wiggle
Posts: 8
Joined: Tue Oct 20, 2020 3:14 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by manymachines » Fri Nov 27, 2020 11:25 am

Hi just saw this message so sorry for late reply!

I got the lamp holder from ebay— https://www.ebay.co.uk/itm/MES-E10-Pane ... SwJe9eWkHq

I don't know if he's got any with the red cover left. The bulb JH specifies is just a tad too long for this holder so the panel nut inside the enclosure doesn't quite reach the thread. I think I botched it with some tape!

The knobs are from uk-electronic.de

look forward to seeing your finished project, so many variations of sound possible with this thing!

User avatar
Hermetech Mastering
Ultra Wiggler
Posts: 856
Joined: Thu Apr 10, 2014 3:40 am
Location: Milan, Italy
Contact:

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by Hermetech Mastering » Sat Nov 28, 2020 4:57 am

There's a lovely free plugin version here, I was surprised how good it sounds. Hard to find good flanger and phaser plugins that sound like the real thing.

https://ccrma.stanford.edu/~jatin/chowdsp/

Cablebasher
Wiggling with Experience
Posts: 434
Joined: Sat Aug 03, 2013 6:51 am
Location: England, UK.

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by Cablebasher » Sat Dec 26, 2020 9:24 am

Thanks manymachines. I was able to get the red bulb cover and it looks sweet.

Guys, are there any calibration guides

What do the 3 trim pots do?

Is it just trim to taste or what.

This is the longest it’s ever taken me to build a “pedal effect”!

Cheers as always

User avatar
B0bcat
Wiggling with Experience
Posts: 461
Joined: Sun Jun 10, 2018 9:07 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by B0bcat » Tue Jan 12, 2021 8:26 pm

Can anybody who's built this on internal power recommend a transformer, preferably from Mouser or Reichelt? Thanks
WTB: MacBeth X-Series Single VCO / Dual Oscillator / Elements

gianni
Common Wiggler
Posts: 82
Joined: Wed Jan 29, 2014 4:22 pm
Location: Germany

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by gianni » Wed Jan 13, 2021 5:50 am

B0bcat wrote:
Tue Jan 12, 2021 8:26 pm
Can anybody who's built this on internal power recommend a transformer, preferably from Mouser or Reichelt? Thanks
I used this one: TALEMA 55102-P1S2 for both the Krautrock and the Tau Pipe phaser. It fits the vandaal Krautrock phaser enclosure if you are building that. It's only avaible from TME AFAIK

User avatar
B0bcat
Wiggling with Experience
Posts: 461
Joined: Sun Jun 10, 2018 9:07 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by B0bcat » Wed Jan 13, 2021 3:34 pm

gianni wrote:
Wed Jan 13, 2021 5:50 am
B0bcat wrote:
Tue Jan 12, 2021 8:26 pm
Can anybody who's built this on internal power recommend a transformer, preferably from Mouser or Reichelt? Thanks
I used this one: TALEMA 55102-P1S2 for both the Krautrock and the Tau Pipe phaser. It fits the vandaal Krautrock phaser enclosure if you are building that. It's only avaible from TME AFAIK
Thank you. I have been advised that Newark/Farnell MCFM70/18 fits that enclosure also, so it appears there are some options.
WTB: MacBeth X-Series Single VCO / Dual Oscillator / Elements

User avatar
muckmires
Common Wiggler
Posts: 63
Joined: Wed Feb 13, 2013 10:52 pm
Location: Nebraska

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by muckmires » Sat Jan 23, 2021 10:23 pm

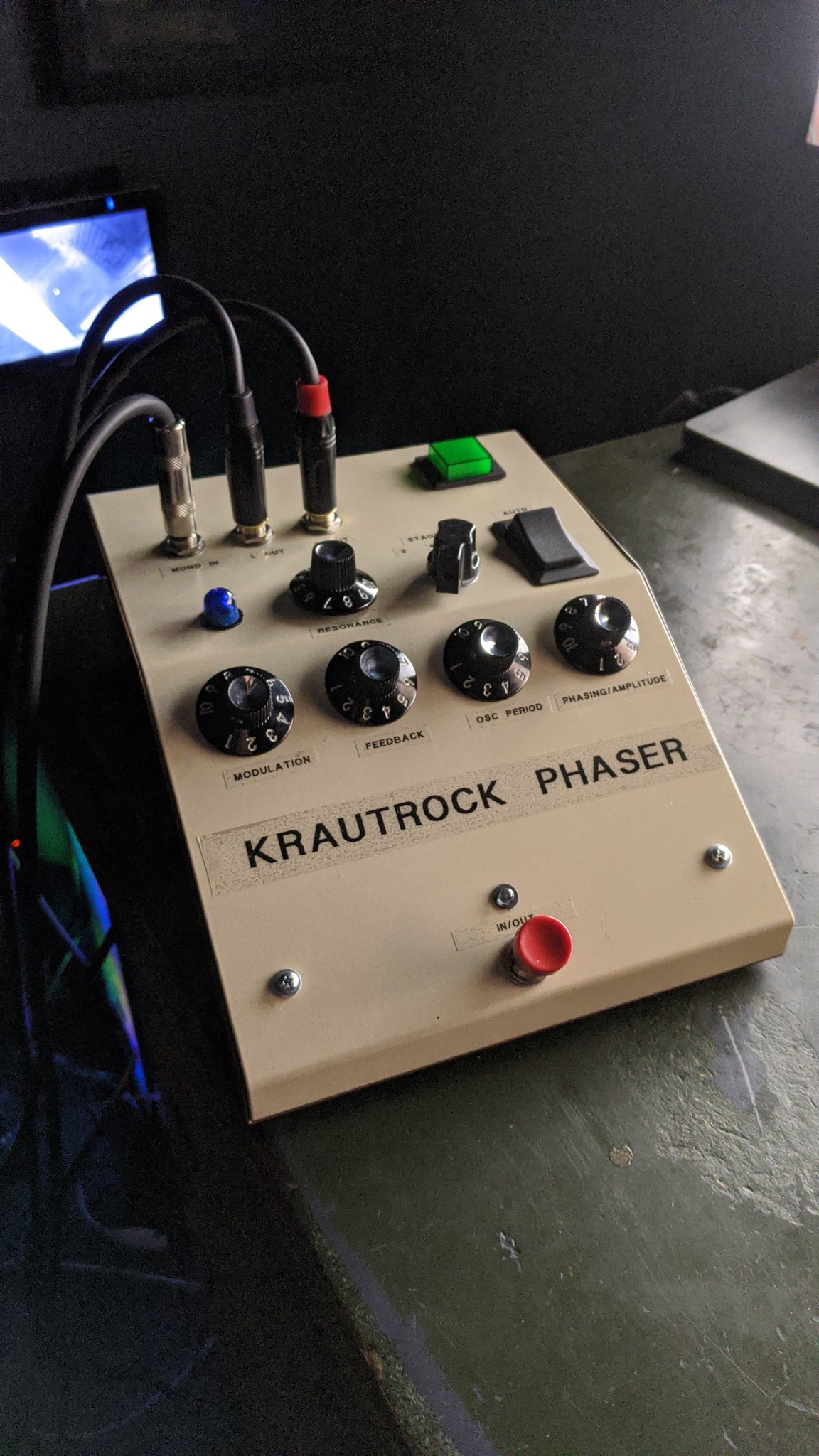

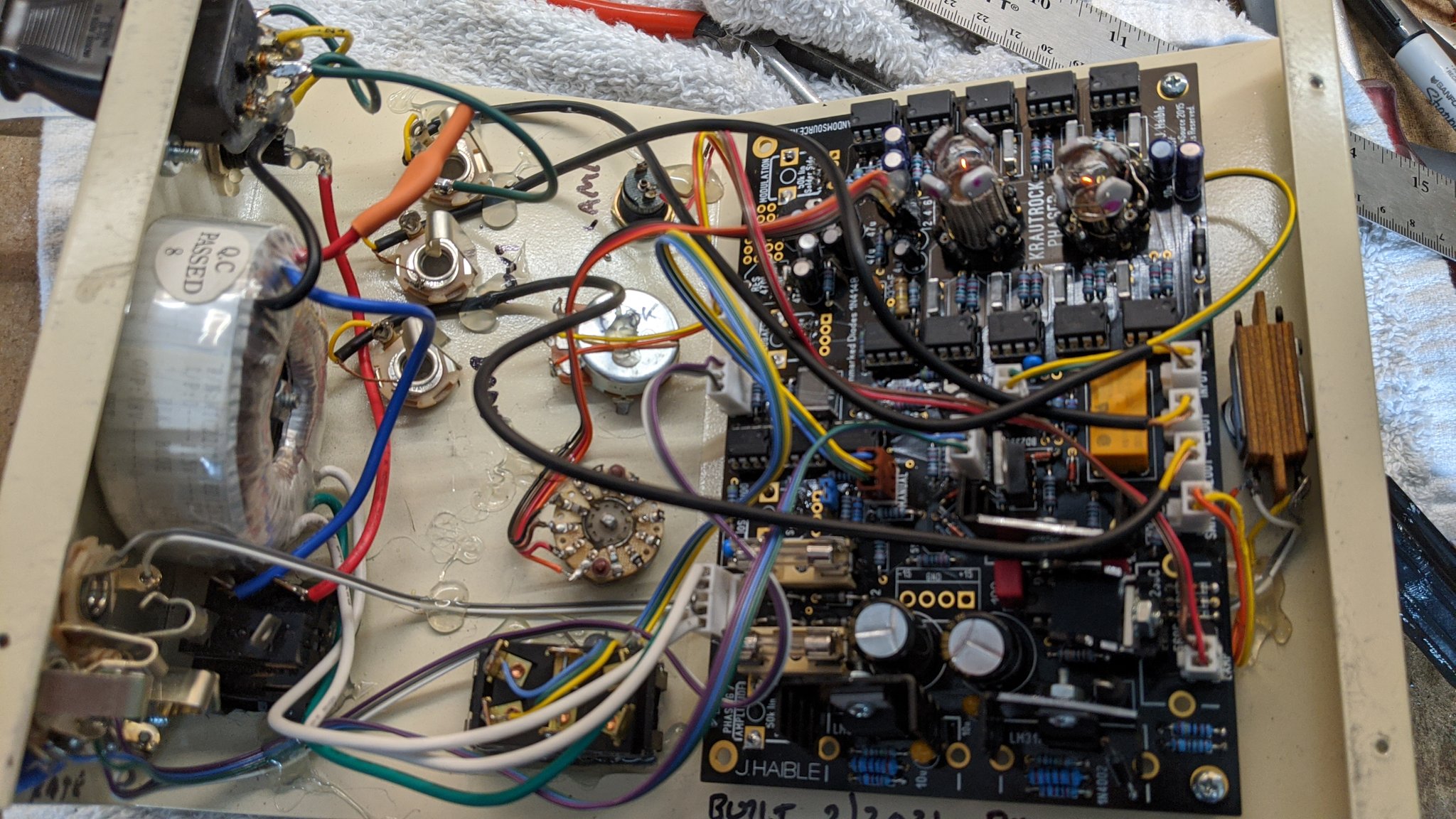

Well, this is a long time coming. When I first posted to this thread it was June of 2015. This was one of the more difficult builds I'd done and I
kept running into problems. Then I'd put it on the shelf. Get it back off the shelf. Tinker a bit. Put it back on the shelf. But it wasn't until today that I almost pulled the trigger on buying an original Schulte Compact "A" for a LOT of money online that I decided to get it down ONE MORE TIME and: what do you know! I finally found the problem! So, I followed my own advice in not giving up. It sounds amazing and, I FINALLY got it to work perfectly.
Patience and well, some troubleshooting skills I learned along the way.
[attachment=0]Phaser.jpg[/attachment]
Attachments

Luchswald
1-Post Wiggler
Posts: 1
Joined: Sun Feb 21, 2021 1:45 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by Luchswald » Sun Feb 21, 2021 2:39 pm

This has been a super-informative thread, and I wish I had found it earlier. I thought I'd share some of the issues I had getting mine going. It seemed to (mostly) work first try, though the bulbs were oscillating, I was getting no phasing. I found the relay sub I had used (255-1079 from Digi-Key) had reverse polarity on the coil pins, so I did a wire flip between the relay and the board. I couldn't readily find the proper relay (though now from another thread I see an Axicom/TE V23105A5403A201 is supposed to work). I had a hard time finding the proper fuse holders here in the US initially, but I did find also from Digi-key, F6245, perfect fit. I also had no oscillator period adjustment, until I placed the shunt I had forgotten. I used the Adafruit 485-161 photoresistors. I don't think they have the same dark-resistance as the originals, but I put them in sockets so I can try others. I went with the internal power supply, and used a 36 volt center-tapped 500 mA toroidal transformer. The case is an LMB MDC-973. With the board mounted to the top, it's a really tight fit at the front for one of the bulbs (which I had to take the base off of to shorten), and some of the heat sinks. If I had it to do over again, I'd mount the board on the bottom cover, and remote the pots.

One final thing, just throwing this out there.. if anyone knows where I can get a copy of J. Haible's Dark November, PM me!


User avatar
hamildad
Super Deluxe Wiggler
Posts: 1261
Joined: Sun Jul 01, 2012 10:46 am
Location: London

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by hamildad » Mon Feb 22, 2021 6:41 am

Luchswald wrote:
Sun Feb 21, 2021 2:39 pm
This has been a super-informative thread, and I wish I had found it earlier. I thought I'd share some of the issues I had getting mine going. It seemed to (mostly) work first try, though the bulbs were oscillating, I was getting no phasing. I found the relay sub I had used (255-1079 from Digi-Key) had reverse polarity on the coil pins, so I did a wire flip between the relay and the board. I couldn't readily find the proper relay (though now from another thread I see an Axicom/TE V23105A5403A201 is supposed to work).
This is my exact issue... I'll check out the Relay I am using,
I did a wire flip between the relay and the board
not sure I understand this, but might look out for a recommended relay... anyone got a part number that they know works?

mine has been on the WIP bench for many a year, so woudl be great to get it working.
My Synth Instagram here * My Synth videos here
-
External PSUs and DC jacks are the hallmarks of toys. - Graham Hinton.
-
I am one of the "tiny fraction of a percentage of oversensitive idiots" who feels the name of this site sends the wrong message.
-
This is primarily for melody and historical educational purposes - Analogue Music

User avatar
FactoryDefault
Common Wiggler
Posts: 172
Joined: Tue Mar 29, 2016 12:37 pm

Re: Jürgen Haible Krautrock phaser BUILD THREAD

Post by FactoryDefault » Mon Feb 22, 2021 5:45 pm

hamildad wrote:
Mon Feb 22, 2021 6:41 am

not sure I understand this, but might look out for a recommended relay... anyone got a part number that they know works?
The part number above works in mine. (TE V23105A5403A201)
Not sure where you are but it’s available from mouser in the US or U.K.

The trick is to use a non-polarized relay so whichever way you energize the coil, the relay switches in the right direction.
