Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Mon Feb 03, 2020 1:28 pm

Call me crazy but is PN4250A gonna work just fine?:

https://www.mouser.com/ProductDetail/Ce ... lj3XHEg%3D

3000+ in stock

User avatar
Kevin Mitchell
Common Wiggler
Posts: 220
Joined: Tue Jun 27, 2017 10:55 am
Location: Springfield, Massachusetts

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Kevin Mitchell » Mon Feb 03, 2020 1:44 pm

The specs are a little further off but I don't see why they wouldn't work fine for this.
Edit: just realized it's pretty much a modern version of the transistor :lol:

My habit of hoarding obsolete parts justifies ordering a load of 2N4250s.

-KM
Last edited by Kevin Mitchell on Mon Feb 03, 2020 1:58 pm, edited 1 time in total.

User avatar
devinw1
Super Deluxe Wiggler
Posts: 1159
Joined: Tue Aug 07, 2018 11:20 am
Location: Portland, OR
Contact:

Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Mon Feb 03, 2020 1:57 pm

I bet if everyone on Muffs DIY pooled our stashes together we could fill a supermarket with obsolete electronic components. I know I've got my share. :lol: :lol:

And yeah I don't know how I missed these PN4250s the first go round.

User avatar
synthcube
you will be assimilated
Posts: 2052
Joined: Wed Dec 21, 2011 6:42 pm
Location: Boston

Re: Project PRO2021 - A Pro-One keyboard synth

Post by synthcube » Tue Feb 04, 2020 12:12 pm

Kevin Mitchell wrote:
Mon Feb 03, 2020 12:42 pm
Just an FYI for anyone replacing the 2N4250 transistors(only in full kit) with the suggested PN200A from earlier in this thread - they are now discontinued as well.

And thank you, Synthcube for accommodating us with the hardware.

-KM
happy to do so! also sending along the shielded cable, switch dust cover set and keyboard connector cable

User avatar
Kevin Mitchell
Common Wiggler
Posts: 220
Joined: Tue Jun 27, 2017 10:55 am
Location: Springfield, Massachusetts

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Kevin Mitchell » Tue Feb 04, 2020 2:45 pm

synthcube wrote:
Tue Feb 04, 2020 12:12 pm
happy to do so! also sending along the shielded cable, switch dust cover set and keyboard connector cable
Sweet!

Here's a spoiler on the latest boards. Love'n the solder mask choice.

For those who haven't seen the kit yet - the quality is mind blowing. I can't say I've seen an instrument more robust than this one.

-KM

User avatar
devinw1
Super Deluxe Wiggler
Posts: 1159
Joined: Tue Aug 07, 2018 11:20 am
Location: Portland, OR
Contact:

Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Tue Feb 04, 2020 2:55 pm

Oooh those do look Sexy don't they! :love:

User avatar
synthcube
you will be assimilated
Posts: 2052
Joined: Wed Dec 21, 2011 6:42 pm
Location: Boston

Re: Project PRO2021 - A Pro-One keyboard synth

Post by synthcube » Wed Feb 05, 2020 4:45 pm

devinw1 wrote:
Tue Feb 04, 2020 2:55 pm
Oooh those do look Sexy don't they! :love:
we have to echo Kevin's comment here- this is an amazingly designed, engineered and manufactured DIY project-- truly now one of our favorites, and we're proud to be associated with it.

full synthCube kits now shipping
PRO2021 Kit.jpg
You do not have the required permissions to view the files attached to this post.

User avatar
devinw1
Super Deluxe Wiggler
Posts: 1159
Joined: Tue Aug 07, 2018 11:20 am
Location: Portland, OR
Contact:

Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Thu Feb 06, 2020 11:12 am

:sb: :sb: :sb:

JanneI
Wiggling with Experience
Posts: 327
Joined: Mon Oct 19, 2015 3:28 am

Re: Project PRO2021 - A Pro-One keyboard synth

Post by JanneI » Thu Feb 06, 2020 1:44 pm

Did these new PCB's include the aftertouch to cv -circuit? If not, and someone needs one, I still have 8 PCBs for that mod.

User avatar
devinw1
Super Deluxe Wiggler
Posts: 1159
Joined: Tue Aug 07, 2018 11:20 am
Location: Portland, OR
Contact:

Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Thu Feb 06, 2020 1:58 pm

JanneI wrote:
Thu Feb 06, 2020 1:44 pm
Did these new PCB's include the aftertouch to cv -circuit? If not, and someone needs one, I still have 8 PCBs for that mod.
The new A PCBs do not have the AT circuit on board but they do have the 2 4-pin header locations on the back to accommodate a AT daughterboard. The layout is shown on the bottom post on page 46 of this thread. :tu:

Dr. Woland
Learning to Wiggle
Posts: 10
Joined: Thu Jun 16, 2016 12:10 pm

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Dr. Woland » Fri Feb 07, 2020 3:44 am

Is there a way to get the full kit in Europe (minus crazy taxes …)?

User avatar
Kevin Mitchell
Common Wiggler
Posts: 220
Joined: Tue Jun 27, 2017 10:55 am
Location: Springfield, Massachusetts

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Kevin Mitchell » Fri Feb 07, 2020 7:01 pm

Received the hardware. There are no flat head screws included besides the 10 for the end cheeks.

The 6-32 x 3/8 (4 count) and 6-32 x 1/4 (31 count) are actually pan head and not flat head like the labels suggest. They need to be flat head.

Missing kep nuts and some screws for the lower chassis components (midi connectors, power input and voltage selector)

Missing all standoffs.

Update:
Missing 3/16” long pan head screws for the pcb side of the standoffs. - the 8 black screws included are good for the bottom of the lower chassis (power supply pcb & chassis brace)

Missing 1/4” long flat head screws (8 count) for lower chassis lip standoffs. Not sure if these are the same as the 31 count - same goes for the lower chassis stuff.

Update:
Keybed cable is far too short - only 8”. You’ll barely be able to reach the connections while assembling - never mind keeping the chassis open while calibrating.

I’m unsure of the slide nut threading for the end cheeks. Can’t seem to get the screws to catch.

Some of these items are listed for hardware in the BOM, some like the pan head stand off screws and kep nuts seem to be missing.

Ill keep updating this as I find more. I haven’t started assembling yet so I’m unsure what else will come up.
Last edited by Kevin Mitchell on Sat Feb 08, 2020 12:35 pm, edited 5 times in total.

User avatar
devinw1
Super Deluxe Wiggler
Posts: 1159
Joined: Tue Aug 07, 2018 11:20 am
Location: Portland, OR
Contact:

Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Fri Feb 07, 2020 9:56 pm

Hmm I will review the hardware BOM vs model tomorrow but I think it's correct since that's the hardware I sent with the beta kits and nobody complained about screws.

Btw for synthcube: it's very important you get the exact flat heads I call out since there are 82 and 100 degree heads available and only the right ones will sit right (and of course they are black stainless to match the panels)

User avatar
devinw1
Super Deluxe Wiggler
Posts: 1159
Joined: Tue Aug 07, 2018 11:20 am
Location: Portland, OR
Contact:

Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Sat Feb 08, 2020 1:55 pm

Alright, so I just went over the newwest hardware BOM and compared it to my Beta pack list and I am sorry to say I was missing a couple of things. I also had an incorrect quantity of pan head screws that are used to mount the PCBs. Here is a redline of the BOM. Orange means it was missing before and yellow means the quantity is changed.

I'm emailing this to SynthCube right now and getting the BOM updated on my website. Sorry about this and I appreciate everyone's patience in dealing with any hiccups during the transition to SynthCube! :guinness:
P2021 Hardware BOM Redline r04 to r05.png
You do not have the required permissions to view the files attached to this post.

User avatar
Kevin Mitchell
Common Wiggler
Posts: 220
Joined: Tue Jun 27, 2017 10:55 am
Location: Springfield, Massachusetts

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Kevin Mitchell » Sat Feb 08, 2020 2:36 pm

Thanks, Devin.

Looks like I need the items within the red box (minus 8 of the 3/16" screws)
As well as a keybed cable that's about 3x longer.
You do not have the required permissions to view the files attached to this post.

User avatar
synthcube
you will be assimilated
Posts: 2052
Joined: Wed Dec 21, 2011 6:42 pm
Location: Boston

Re: Project PRO2021 - A Pro-One keyboard synth

Post by synthcube » Sat Feb 08, 2020 2:42 pm

devinw1 wrote:
Sat Feb 08, 2020 1:55 pm
Alright, so I just went over the newwest hardware BOM and compared it to my Beta pack list and I am sorry to say I was missing a couple of things. I also had an incorrect quantity of pan head screws that are used to mount the PCBs. Here is a redline of the BOM. Orange means it was missing before and yellow means the quantity is changed.

I'm emailing this to SynthCube right now and getting the BOM updated on my website. Sorry about this and I appreciate everyone's patience in dealing with any hiccups during the transition to SynthCube! :guinness:

P2021 Hardware BOM Redline r04 to r05.png
thanks devin-- email received, and we will work to revise the BOMs and order/stock the new bits :)

User avatar
synthcube
you will be assimilated
Posts: 2052
Joined: Wed Dec 21, 2011 6:42 pm
Location: Boston

Re: Project PRO2021 - A Pro-One keyboard synth

Post by synthcube » Mon Feb 10, 2020 1:25 pm

here's our revised kit BOM that includes the hardware changes noted above--
PRO2021 synthCube BOM v1.1.pdf
You do not have the required permissions to view the files attached to this post.

User avatar
devinw1
Super Deluxe Wiggler
Posts: 1159
Joined: Tue Aug 07, 2018 11:20 am
Location: Portland, OR
Contact:

Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Mon Feb 10, 2020 2:30 pm

Sweet! Looking good guys, Thanks! :sb:

User avatar
Kevin Mitchell
Common Wiggler
Posts: 220
Joined: Tue Jun 27, 2017 10:55 am
Location: Springfield, Massachusetts

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Kevin Mitchell » Wed Feb 12, 2020 12:25 pm

Set screw style knobs on D-shaft pots and switches wobble when turned - not perfectly centered. Looking for workarounds or adapters.

Synthcube's BOM still shows pre-assembled keybed cable ~8" long.

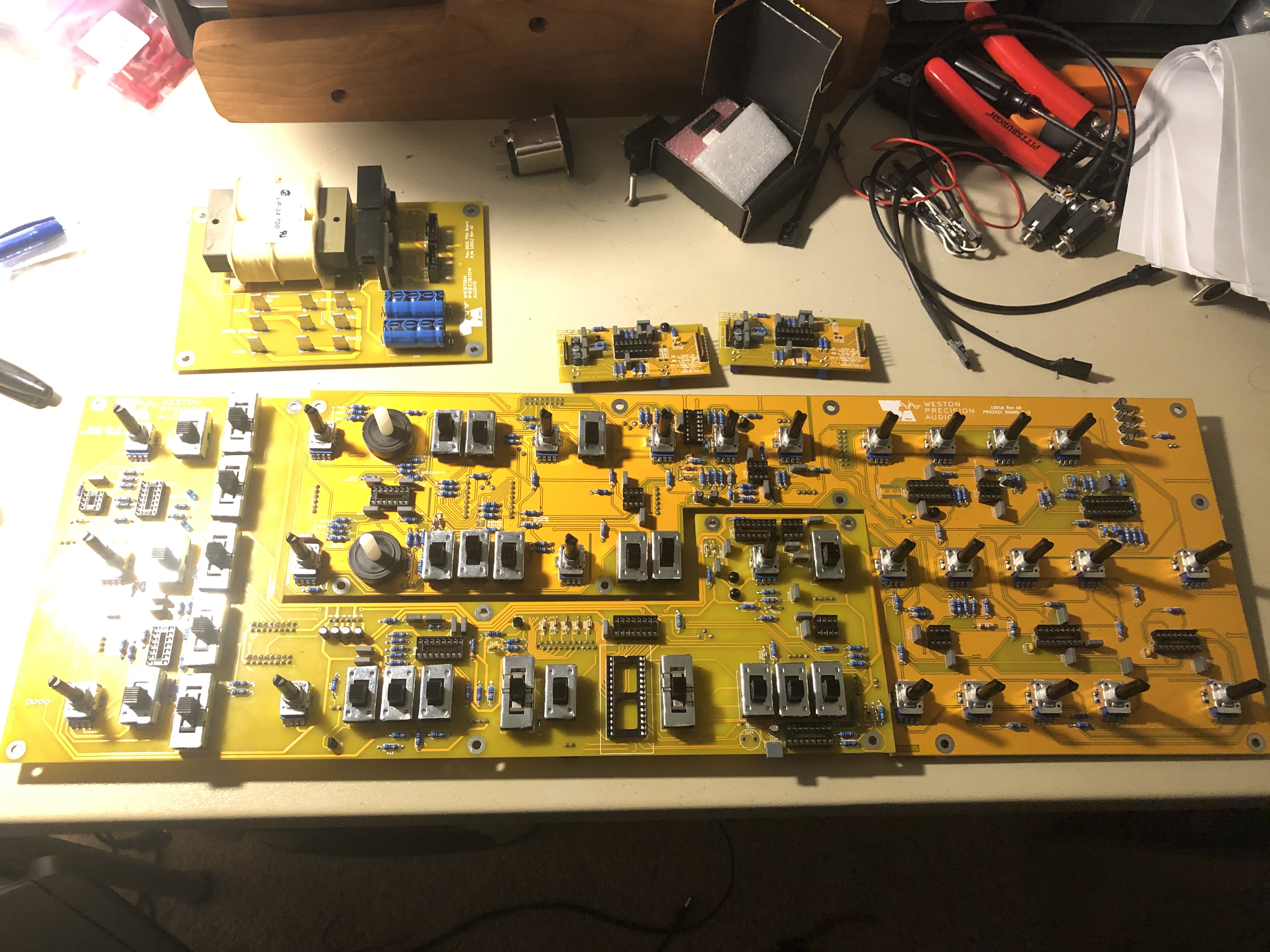

Boards are populated, cables prepped, patiently waiting for the last bits. :hail:

-KM

User avatar
devinw1
Super Deluxe Wiggler
Posts: 1159
Joined: Tue Aug 07, 2018 11:20 am
Location: Portland, OR
Contact:

Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Wed Feb 12, 2020 1:26 pm

Lookin' good! Ah, the knobs. Yes, the set screw ones do spin a little off center but it never bothered me. I think adapters do exist 6-6.35mm, or the push-on knobs that Alititude909 sells spin true.

If anyone has any sources for 6-6.35mm knob adapters, please post on this thread, it would be appreciated! :tu:

User avatar
Altitude909
Super Deluxe Wiggler
Posts: 3253
Joined: Wed Aug 24, 2011 5:13 pm
Location: Meesheegan

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Altitude909 » Wed Feb 12, 2020 1:50 pm

My knobs are long gone..

http://smallbear-electronics.mybigcomme ... led-split/

bit silly price wise, but it is what it is.

I found drinking straws can work pretty well too.
Last edited by Altitude909 on Wed Feb 12, 2020 1:53 pm, edited 1 time in total.

User avatar
Kevin Mitchell
Common Wiggler
Posts: 220
Joined: Tue Jun 27, 2017 10:55 am
Location: Springfield, Massachusetts

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Kevin Mitchell » Wed Feb 12, 2020 1:52 pm

So the diameter is 6mm?

I can give this a shot; https://lovemyswitches.com/potentiomete ... t-adapter/
If they can't handle the set screw pressing against the void I could fill it with a shim or epoxy to cure my OCD :lol:

Edit: hey it's exactly what Altitude suggest but 6 pennies less. I'll shop around some more.
Altitude909 wrote:
Wed Feb 12, 2020 1:50 pm
I found drinking straws can work pretty well too.
What kind of fancy high grade straws are you finding? :hihi:

-KM

User avatar
Altitude909
Super Deluxe Wiggler
Posts: 3253
Joined: Wed Aug 24, 2011 5:13 pm
Location: Meesheegan

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Altitude909 » Wed Feb 12, 2020 2:23 pm

I find the really nice, top shelf straws at the local dunkin donuts, good snug fit. You can usually snatch a handful and make a break for the door before they notice.

User avatar
Kevin Mitchell
Common Wiggler
Posts: 220
Joined: Tue Jun 27, 2017 10:55 am
Location: Springfield, Massachusetts

Re: Project PRO2021 - A Pro-One keyboard synth

Post by Kevin Mitchell » Wed Feb 12, 2020 2:28 pm

:lol: :lol: :lol: perfect.

I'm going to hit the hardware store. If they stock the thinnest walled 1/4 brass tubing I should be in business 👍

-KM

User avatar
devinw1
Super Deluxe Wiggler
Posts: 1159
Joined: Tue Aug 07, 2018 11:20 am
Location: Portland, OR
Contact:

Re: Project PRO2021 - A Pro-One keyboard synth

Post by devinw1 » Wed Feb 12, 2020 4:22 pm

LOL. Drinking straw trick noted!

Although I live in Portland and we have all but banned single use straws here. You can get em but you usually have to ask.
