Okay,
Having browsed through this topic a number of times I feel slightly, no, very embarrassed with what I am about to share with you.
A simple build, that is for sure, and a module that no doubt everyone has a go at in their early days, I would have thought.
Previously all I had made was even simpler passive attenuators.
This build is slightly more complicated and contains "real" electronic components.
I give you my attempt at a Passive Low Pass Gate. Well, two, so I guess that makes it a Dual Passive Low Pass Gate.
And, yeah, I know, it isn't really a LPG, but I sure do enjoy using my Meng-Qi DPLPG so that's another reason for giving this a go. Time for some photographs *gulp*:-




So, not only dodgy low light images (the last one took three seconds to expose) but a very shoddy effort.
I do enjoy DIY, providing it is doing something I enjoy. I have made all sorts over the years... Bookshelves, TV stands, a 12m^2 wooden shed, that kind of stuff. Stuff I hate is putting up curtain rails... Does my head in that one.
I have experience with soldering but I was fifteen at the time, now sixty. It is only since getting into modular that I started to solder more often.
I have no experience worth talking about with regards to "point to point" soldering. So that mess that you can see above I blame on that.
What do you guys do when it comes to point to point stuff? I didn't really have a plan. I was thinking of modelling each component in 3D using BricsCAD (similar to AutoCAD but a fraction of the cost) and then assembling the components in the virtual world first. But after thinking about that for ten minutes or so I decided that it would take too long and just made it up as I went along.
Although it is a DPLPG they are slightly different and the lower one uses another vactrol which has its LDR wired before the capacitors (I have put two capacitors in parallel, which sounded better on the breadboard). So I can use CV to alter the tone of the output. It's not that great but decided to stick to the plan.
I therefore started with the upper, and simpler PLPG and then building the second one once I had finished and tested the first.
I'm glad to say that they both function as expected.
I put a second LED as an indicator in series before the vactrol. I noticed that it was more usual to put that LED in parallel but during tests I found that I preferred the in series arrangement, sound wise. Without that LED I found the PLPG to be too fast and clicky and the second LED helps to get rid of that.
I haven't installed it yet because, although nothing short circuits at the moment, I would feel a lot happier once I have gone around a lot of the bare wires with some insulation tape. I am hoping that it isn't going to get too warm, which would probably cause the tape to sag away a bit. I'll probably take it out for inspection now and then just to make sure it is okay.
cheers, and thanks for reading about my first Big Build
andy
Having browsed through this topic a number of times I feel slightly, no, very embarrassed with what I am about to share with you.
A simple build, that is for sure, and a module that no doubt everyone has a go at in their early days, I would have thought.
Previously all I had made was even simpler passive attenuators.
This build is slightly more complicated and contains "real" electronic components.
I give you my attempt at a Passive Low Pass Gate. Well, two, so I guess that makes it a Dual Passive Low Pass Gate.
And, yeah, I know, it isn't really a LPG, but I sure do enjoy using my Meng-Qi DPLPG so that's another reason for giving this a go. Time for some photographs *gulp*:-




So, not only dodgy low light images (the last one took three seconds to expose) but a very shoddy effort.
I do enjoy DIY, providing it is doing something I enjoy. I have made all sorts over the years... Bookshelves, TV stands, a 12m^2 wooden shed, that kind of stuff. Stuff I hate is putting up curtain rails... Does my head in that one.
I have experience with soldering but I was fifteen at the time, now sixty. It is only since getting into modular that I started to solder more often.
I have no experience worth talking about with regards to "point to point" soldering. So that mess that you can see above I blame on that.
What do you guys do when it comes to point to point stuff? I didn't really have a plan. I was thinking of modelling each component in 3D using BricsCAD (similar to AutoCAD but a fraction of the cost) and then assembling the components in the virtual world first. But after thinking about that for ten minutes or so I decided that it would take too long and just made it up as I went along.
Although it is a DPLPG they are slightly different and the lower one uses another vactrol which has its LDR wired before the capacitors (I have put two capacitors in parallel, which sounded better on the breadboard). So I can use CV to alter the tone of the output. It's not that great but decided to stick to the plan.
I therefore started with the upper, and simpler PLPG and then building the second one once I had finished and tested the first.
I'm glad to say that they both function as expected.
I put a second LED as an indicator in series before the vactrol. I noticed that it was more usual to put that LED in parallel but during tests I found that I preferred the in series arrangement, sound wise. Without that LED I found the PLPG to be too fast and clicky and the second LED helps to get rid of that.
I haven't installed it yet because, although nothing short circuits at the moment, I would feel a lot happier once I have gone around a lot of the bare wires with some insulation tape. I am hoping that it isn't going to get too warm, which would probably cause the tape to sag away a bit. I'll probably take it out for inspection now and then just to make sure it is okay.
cheers, and thanks for reading about my first Big Build

andy
Re: The 2020 Show Us Your DIY Builds Thread!
i'm not using 3D CAD or some software for point-to-point soldering. real world is fast and intuitive to me. and desoldering is simple.synkrotron wrote: ↑Sun May 24, 2020 4:49 pm
What do you guys do when it comes to point to point stuff? I didn't really have a plan. I was thinking of modelling each component in 3D using BricsCAD (similar to AutoCAD but a fraction of the cost) and then assembling the components in the virtual world first. But after thinking about that for ten minutes or so I decided that it would take too long and just made it up as I went along.
i'm doing;
* With color pencil on schematics, group the component with related component. i.e. TL072 with 104 cap and resistors, jack with resistor, PT2399 with related resistors, caps. "make module in module"
* in each group, soldering components as near as possible, without wire, only from component itself. layering.
* position and soldering the each soldered component behind jack or panel.
* wiring each groups.
* add power connector, it is also pre-soledred with beads, caps, diodes.
* make position, trying not to use additional wires, and not to far each to each. "topology"
* trying to support physikalisch each with each.
hopes helpful
- sduck
- experimental use of gravity
- Posts: 14084
- Joined: Wed Feb 18, 2009 6:03 pm
- Location: Vortepexaion, TN, USA
Re: The 2020 Show Us Your DIY Builds Thread!
That's beautiful! Love the point to point wiring. There should be more of that in synth diy.synkrotron wrote: ↑Sun May 24, 2020 4:49 pmOkay,
Having browsed through this topic a number of times I feel slightly, no, very embarrassed with what I am about to share with you.
- synkrotron
- Ultra Wiggler
- Posts: 941
- Joined: Wed Nov 09, 2016 12:48 pm
- Location: Warrington UK
- Contact:
Re: The 2020 Show Us Your DIY Builds Thread!
Yes, thank you very much

I think I did okay with my build with only 15 components, not including the jack sockets. I managed without printing out the schematics and I had them up on my computer screen instead. But I can see the advantage of being able to make notes for larger projects.
I didn't time my build but it must have taken at least three hours all together. Hopefully as I build more I will get a little bit faster.
Haha! I suppose it does have a certain organic beauty

- Dr. Sketch-n-Etch
- Super Deluxe Wiggler
- Posts: 7990
- Joined: Thu Jan 21, 2010 1:46 pm
- Location: Vancouver, BC, Canada
Re: The 2020 Show Us Your DIY Builds Thread!
I love it! However, I believe that you would probably have an easier time if you used veroboard instead of point-to-point wiring. Also, your circuit would be more secure and less likely to touch other stuff behind the panels.
Incidentally, I just posted a video of my new 5U Dr. Octature build. Check it out on my thread Something New from Doc Sketchy
Incidentally, I just posted a video of my new 5U Dr. Octature build. Check it out on my thread Something New from Doc Sketchy
A dewdrop can exalt us like the music of the sun.
- synkrotron
- Ultra Wiggler
- Posts: 941
- Joined: Wed Nov 09, 2016 12:48 pm
- Location: Warrington UK
- Contact:
Re: The 2020 Show Us Your DIY Builds Thread!
Yes, you are right, I should look into that veroboard stuff. In the meantime I wrapped it up with some insulation tape. Doesn't look so nice now but it is quite solid and I can no longer poke the LEDs back through the front panelDr. Sketch-n-Etch wrote: ↑Mon May 25, 2020 2:03 pmI love it! However, I believe that you would probably have an easier time if you used veroboard instead of point-to-point wiring. Also, your circuit would be more secure and less likely to touch other stuff behind the panels.

I'll do that nowIncidentally, I just posted a video of my new 5U Dr. Octature build. Check it out on my thread Something New from Doc Sketchy

- audioCTRL
- Wiggling with Experience
- Posts: 390
- Joined: Wed Jun 09, 2010 2:40 am
- Location: cph
- Contact:
Re: The 2020 Show Us Your DIY Builds Thread!
Lovely mess - DIY at its very best!

- Grumble
- Super Deluxe Wiggler
- Posts: 1795
- Joined: Thu Dec 17, 2015 5:24 am
- Location: U aint much if U aint Dutch
- Contact:
Re: The 2020 Show Us Your DIY Builds Thread!
Eeprom programmer for 82c512 (64k x 8) eeproms for a digital waveform generator under construction.
- Hutenberger
- Learning to Wiggle
- Posts: 32
- Joined: Tue Apr 28, 2020 1:52 am
- Location: Munich, Germany
- Contact:
Re: The 2020 Show Us Your DIY Builds Thread!
Built some very basic modules on Stripboard with a somehow "rock and rollish" faceplate "design" ;-)
- Dual V/Oct VCO for Saw and Pulse
- Dual A=B*C+D Attenuverter/Shifter
- VCA lin/log based on MFOS
- Multiple (yay!)
- Power supply (wall wart + LDO style, not visible)
- Some basic In/Out/Send/Return jacks with passive Potentiometers as my other gear is 6,3mm jack based and only likes Line-Level signals.
this little rack sounds actually quite mighty
- Dual V/Oct VCO for Saw and Pulse
- Dual A=B*C+D Attenuverter/Shifter
- VCA lin/log based on MFOS
- Multiple (yay!)
- Power supply (wall wart + LDO style, not visible)
- Some basic In/Out/Send/Return jacks with passive Potentiometers as my other gear is 6,3mm jack based and only likes Line-Level signals.
this little rack sounds actually quite mighty

Neuzeit Instruments
INSTAGRAM: @neuzeit_instruments
INSTAGRAM: @neuzeit_instruments
- synkrotron
- Ultra Wiggler
- Posts: 941
- Joined: Wed Nov 09, 2016 12:48 pm
- Location: Warrington UK
- Contact:
Re: The 2020 Show Us Your DIY Builds Thread!
Very nice

Which VCO did you go with? Or did you design it yourself? I am thinking I should be having a go at a 1V/Oct VCO, amongst other things.
- Hutenberger
- Learning to Wiggle
- Posts: 32
- Joined: Tue Apr 28, 2020 1:52 am
- Location: Munich, Germany
- Contact:
Re: The 2020 Show Us Your DIY Builds Thread!
I built the circuit by myself, but i would rather call it "putting the building blocks together and playing around with some values" instead of "designing" ;-)
This is a simple Saw-Core to get started: http://electro-music.com/forum/post-292718.html
I derived the pulse/PWM from it by placing an op-amp as a comparator behind it and made the comparison-voltage adjustable.
The Sync can be achieved by placing a FET across the Capacitor.
For the Exp-Converter, this design is quite popular and works well: https://www.birthofasynth.com/Thomas_He ... t_0001.pdf
A quite similar circuit can be seen here: http://musicfromouterspace.com/index.ph ... 6&VPH=1132
This is a simple Saw-Core to get started: http://electro-music.com/forum/post-292718.html
I derived the pulse/PWM from it by placing an op-amp as a comparator behind it and made the comparison-voltage adjustable.
The Sync can be achieved by placing a FET across the Capacitor.
For the Exp-Converter, this design is quite popular and works well: https://www.birthofasynth.com/Thomas_He ... t_0001.pdf
A quite similar circuit can be seen here: http://musicfromouterspace.com/index.ph ... 6&VPH=1132
Neuzeit Instruments
INSTAGRAM: @neuzeit_instruments
INSTAGRAM: @neuzeit_instruments
- synkrotron
- Ultra Wiggler
- Posts: 941
- Joined: Wed Nov 09, 2016 12:48 pm
- Location: Warrington UK
- Contact:
Re: The 2020 Show Us Your DIY Builds Thread!
Thank you for the linksHutenberger wrote: ↑Thu May 28, 2020 1:43 pmI built the circuit by myself, but i would rather call it "putting the building blocks together and playing around with some values" instead of "designing" ;-)
This is a simple Saw-Core to get started: http://electro-music.com/forum/post-292718.html
I derived the pulse/PWM from it by placing an op-amp as a comparator behind it and made the comparison-voltage adjustable.
The Sync can be achieved by placing a FET across the Capacitor.
For the Exp-Converter, this design is quite popular and works well: https://www.birthofasynth.com/Thomas_He ... t_0001.pdf
A quite similar circuit can be seen here: http://musicfromouterspace.com/index.ph ... 6&VPH=1132

You seem to know your stuff. The only circuit I am familiar with is the astable multivibrator but I haven't even made up one of those for over 45 years.
Re: The 2020 Show Us Your DIY Builds Thread!
Solid state pultecs
- synkrotron
- Ultra Wiggler
- Posts: 941
- Joined: Wed Nov 09, 2016 12:48 pm
- Location: Warrington UK
- Contact:
Re: The 2020 Show Us Your DIY Builds Thread!
Okay, it's me again, come to lower the tone of the Show Us Your DIY Builds Thread.
I have made many passive attenuators now and I will be the first to admit that they are not really worthy of posting here. But I thought sharing my latest passive attenuator module would at least give you a bit of a laugh.
Due to lockdown and all that I've been wondering how I could make a front panel. I only had a small scrap of aluminium sheet left and I tried some plastic but it was not stiff enough.
But then I spotted a sheet of 1mm thick mild steel underneath my workbench. I can't even remember when or why I got it, so it must have been there for quite a while. A little bit rusty... Then I thought, let's go for the Mad Max look.
Here's the front panel, cut to size using a hand held electric jigsaw and holes drilled with a hand drill. I have yet to get hold of a drill stand, but I am not sure it is worth bothering yet as I don't know how serious I am going to get with this DIY thing. I have a centre punch so I think I just about managed to keep the holes reasonable well spaced. I'm thinking I need to get some slightly more powerful reading glasses...

The hole at bottom left is a bit naff... I tried going from 2mm pilot to 8mm hole in one go. For the rest I went 2mm > 5mm > 8mm.
Components in place ready for soldering:-

Front of panel with knobs on the pots:-

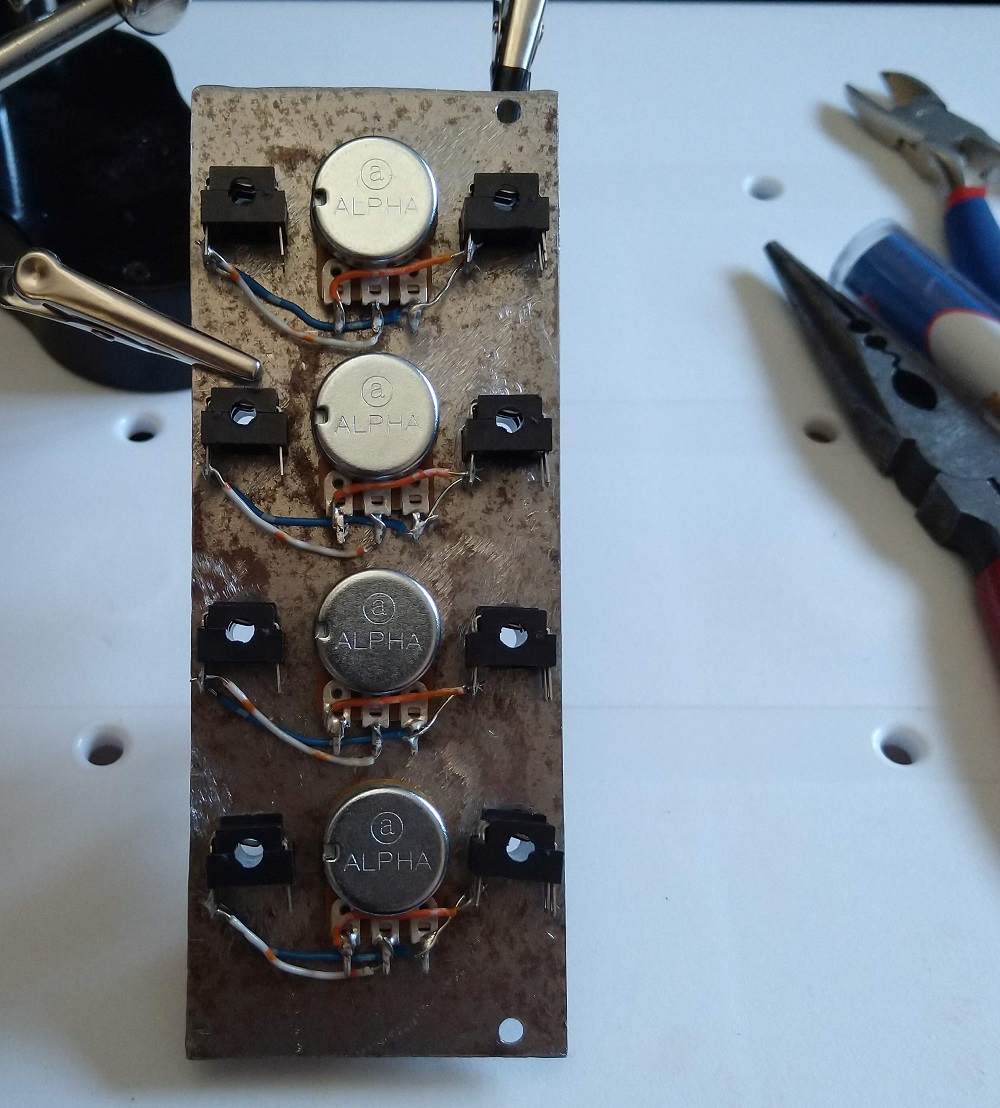

Rear view showing my average point-to-point wiring:-

And finally located in my new Arturia Rackbrute case:-

I think the rusty panel sits well in the new case haha!
The aluminium attentuator panel to the right was knocked up by my son in his "workshop." He had a bit of a mishap with his sanding belt and removed more material than intended. Does the job though...
I have made many passive attenuators now and I will be the first to admit that they are not really worthy of posting here. But I thought sharing my latest passive attenuator module would at least give you a bit of a laugh.
Due to lockdown and all that I've been wondering how I could make a front panel. I only had a small scrap of aluminium sheet left and I tried some plastic but it was not stiff enough.
But then I spotted a sheet of 1mm thick mild steel underneath my workbench. I can't even remember when or why I got it, so it must have been there for quite a while. A little bit rusty... Then I thought, let's go for the Mad Max look.
Here's the front panel, cut to size using a hand held electric jigsaw and holes drilled with a hand drill. I have yet to get hold of a drill stand, but I am not sure it is worth bothering yet as I don't know how serious I am going to get with this DIY thing. I have a centre punch so I think I just about managed to keep the holes reasonable well spaced. I'm thinking I need to get some slightly more powerful reading glasses...

The hole at bottom left is a bit naff... I tried going from 2mm pilot to 8mm hole in one go. For the rest I went 2mm > 5mm > 8mm.
Components in place ready for soldering:-

Front of panel with knobs on the pots:-

Rear view showing my average point-to-point wiring:-

And finally located in my new Arturia Rackbrute case:-

I think the rusty panel sits well in the new case haha!
The aluminium attentuator panel to the right was knocked up by my son in his "workshop." He had a bit of a mishap with his sanding belt and removed more material than intended. Does the job though...
- wackelpeter
- Veteran Wiggler
- Posts: 585
- Joined: Fri Apr 17, 2015 5:56 pm
- Location: Germany, MD
Re: The 2020 Show Us Your DIY Builds Thread!
Down't know exactly when i finished it. It either was late in 2019 or early in 2020.
Some kind of expansion for my crappy modular synth lab.
Here we have in this box 2 6 step Serge programmers, 4 gate to trigger converters, 1 Serge smooth & stepped generator, 3 Serge Bi-directional switches, 1 Yusynth VC glide, 1 Ian Fritz delayed pulser, 1 Yusynth CV standard and 2 crappy switches for logic signals.
Some kind of expansion for my crappy modular synth lab.
Here we have in this box 2 6 step Serge programmers, 4 gate to trigger converters, 1 Serge smooth & stepped generator, 3 Serge Bi-directional switches, 1 Yusynth VC glide, 1 Ian Fritz delayed pulser, 1 Yusynth CV standard and 2 crappy switches for logic signals.
-
- Learning to Wiggle
- Posts: 20
- Joined: Wed Apr 29, 2020 2:42 pm
Re: The 2020 Show Us Your DIY Builds Thread!
That looks awesome, the Mad Max aesthetic definitely works for it. I started on some blank aluminum panels a couple weeks ago that came with my case as placeholders, and just packed as much stuff into them as I could. My first project was a passive mult that I since upgraded to buffered (with a bonus attenuator that I turned into a deadbug amp for bumping line signals up to modular level), you can see how much the holes wandered:synkrotron wrote: ↑Fri May 29, 2020 9:44 amAnd finally located in my new Arturia Rackbrute case:-
I think the rusty panel sits well in the new case haha!
The aluminium attentuator panel to the right was knocked up by my son in his "workshop." He had a bit of a mishap with his sanding belt and removed more material than intended. Does the job though...
A drill press is definitely the ideal way to go, but not having one I found that I have the best luck hand drilling if I mark the point and then drill nearly all the way through with a much smaller bit, and then finish with the final size. The small bit seems to wander less, and gives the point of the larger drill a precise path of least resistance. Sharp bits wander less, too, since they tend to walk around when one edge is duller than the other. That method worked a lot better on my next project, the 4x passive attenuator, though they're still not perfect. I also switched up the wiring method and colors after the first (log) one, so I'll just be annoyed by the inconsistency forever because I'm not going to re-do something that already works.
