Manhattan Analog 'Mix' - Build Thread

Post by Monobass » Wed Mar 06, 2013 7:09 am

Last edited by Monobass on Wed Mar 06, 2013 4:25 pm, edited 3 times in total.
Thonk - CLICK HERE - Modular Synth DIY + Eurorack Accessories Store

User avatar
renasent
Wiggling with Experience
Posts: 299
Joined: Thu Jan 24, 2013 6:11 pm
Location: Central Scotland

Post by renasent » Wed Mar 06, 2013 2:20 pm

:tu:

User avatar
Monobass
thonk.co.uk
Posts: 8817
Joined: Fri May 29, 2009 5:39 pm
Location: Brighton, UK
Contact:

Post by Monobass » Wed Mar 06, 2013 3:44 pm

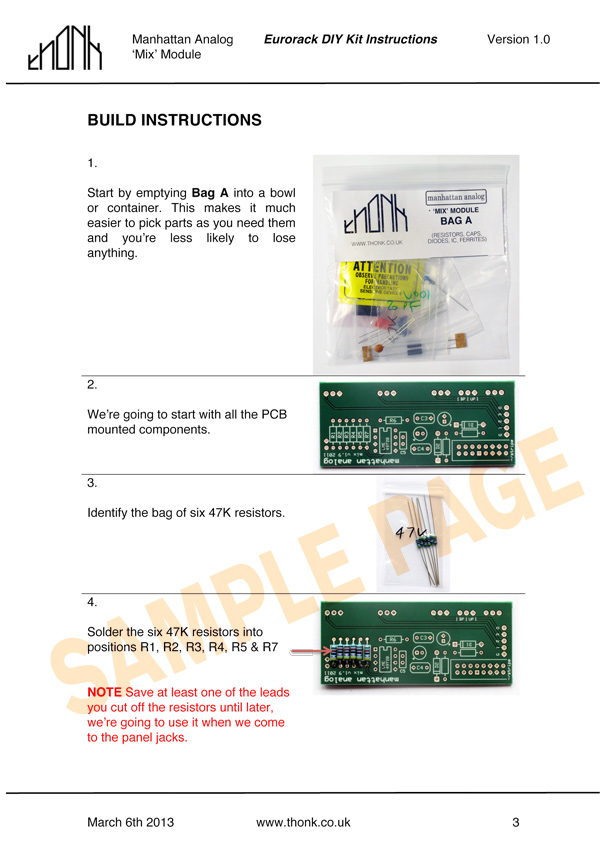

Here we go, build doc - http://www.thonk.co.uk/Documents/MA/MA_ ... s_v1.0.pdf

I advise reading this in Adobe Reader, OSX Preview or similar, browser based PDF viewers can sometimes be unreliable.
Thonk - CLICK HERE - Modular Synth DIY + Eurorack Accessories Store

User avatar
rockwoofstone
Veteran Wiggler
Posts: 560
Joined: Tue Oct 02, 2012 5:32 am
Location: UK

Post by rockwoofstone » Fri Mar 08, 2013 12:53 pm

Just finished building my 3 kits, and all have the output pot acting as an attenuverter, rather than just attenuator. Not what I was expecting - is that expected behaviour, or have I managed to make the same build error on all 3?

User avatar
Monobass
thonk.co.uk
Posts: 8817
Joined: Fri May 29, 2009 5:39 pm
Location: Brighton, UK
Contact:

Post by Monobass » Fri Mar 08, 2013 1:08 pm

Ah yeah you just need to change the jumper to UP instead of BP, I should have mentioned that in the build docs.
Thonk - CLICK HERE - Modular Synth DIY + Eurorack Accessories Store

User avatar
rockwoofstone
Veteran Wiggler
Posts: 560
Joined: Tue Oct 02, 2012 5:32 am
Location: UK

Post by rockwoofstone » Fri Mar 08, 2013 1:11 pm

Understood - thanks!

User avatar
sync24
Ultra Wiggler
Posts: 883
Joined: Tue Dec 28, 2010 2:44 pm
Location: Brighton

Post by sync24 » Fri Mar 08, 2013 4:03 pm

mine are not doing what they should.
i switched the grounding around, now they both hum.
also, one of the mixers seems to cut off below a certain frequency range.
i checked the jumper is on UP, it is.
my soldering isn't usually a problem...
so, i don't get it.
:despair:

User avatar
Monobass
thonk.co.uk
Posts: 8817
Joined: Fri May 29, 2009 5:39 pm
Location: Brighton, UK
Contact:

Post by Monobass » Fri Mar 08, 2013 4:50 pm

Post some pics duff, or bring them over :)
Thonk - CLICK HERE - Modular Synth DIY + Eurorack Accessories Store

User avatar
sync24
Ultra Wiggler
Posts: 883
Joined: Tue Dec 28, 2010 2:44 pm
Location: Brighton

Post by sync24 » Fri Mar 08, 2013 5:46 pm

cheers boss, they do look ok.
one now seems to be doing ok, the other, though, still has the cut-off issue...
i'll have a bit more of a poke about but might be round soon-ish :tu:

User avatar
Monobass
thonk.co.uk
Posts: 8817
Joined: Fri May 29, 2009 5:39 pm
Location: Brighton, UK
Contact:

Post by Monobass » Fri Mar 08, 2013 6:07 pm

I've had weird frequency loss things where I've got a short somewhere in the past, not on the Mix... But then I don't have an experience of them going wrong :)
Thonk - CLICK HERE - Modular Synth DIY + Eurorack Accessories Store

User avatar
crossinger
Wiggling with Experience
Posts: 356
Joined: Mon Feb 04, 2013 3:09 pm
Location: Berlin

Post by crossinger » Sat Apr 13, 2013 11:16 am

Ok, I finished the 2nd module (after AT-AT-AT last weekend). But this time only with partly luck. :waah:

Nothing hums and I didn't fry anything. But 1st channel refuses to work. I checked the solderings with my multimeter beep and everything seems fine: from the jacks over the pots and the resistor in the array to the chip. Everytime I got a beep. Now I'm lost :despair: Where can I check the further signal path on the PCB or is it better to attach a signal now for debugging?

Thanks for any advice!

EDIT: Request withdrawn! After another debug session and cleaning the PCB with a special brush, everything seems fine now (fingers crossed). I hope, this is not a cold solder joint.

Finally: :tu:

User avatar
Monobass
thonk.co.uk
Posts: 8817
Joined: Fri May 29, 2009 5:39 pm
Location: Brighton, UK
Contact:

Post by Monobass » Sat Apr 13, 2013 1:03 pm

Good move, sounds like you probably just had a short caused by a solder bridge somewhere, they can be thinner than hair and have a tendency to camouflage themselves.

Next port of call would have been a wiring error, it doesn't matter how much build experience you have, wiring errors are very common.
Thonk - CLICK HERE - Modular Synth DIY + Eurorack Accessories Store

User avatar
negativspace
Manhattan Analog
Posts: 6576
Joined: Tue Apr 13, 2010 2:50 am
Location: Manhattan, KS, USA
Contact:

Post by negativspace » Sat Apr 13, 2013 5:08 pm

With this module there is very little that happens before the channels are summed - so if there's ever a build issue that effects only one channel you need to look at the jack, pot, input resistor or wire. Anything past that will effect all 3 channels.

User avatar
Funky40
Super Deluxe Wiggler
Posts: 5902
Joined: Mon Nov 17, 2008 7:08 pm
Location: on a big voyage

Re: Manhattan Analog 'Mix' - Build Thread

Post by Funky40 » Wed Aug 28, 2013 3:32 pm

when do you expect to get mix back in stock ? so +- weeks
wanted to order some days ago.......need


User avatar
Monobass
thonk.co.uk
Posts: 8817
Joined: Fri May 29, 2009 5:39 pm
Location: Brighton, UK
Contact:

Re: Manhattan Analog 'Mix' - Build Thread

Post by Monobass » Wed Aug 28, 2013 4:25 pm

Funky40 wrote:
when do you expect to get mix back in stock ? so +- weeks
wanted to order some days ago.......need
I will restock it at some point, but not within the next two months. Negativspace has PCBs and panels in stock though I think.
Thonk - CLICK HERE - Modular Synth DIY + Eurorack Accessories Store

User avatar
Monobass
thonk.co.uk
Posts: 8817
Joined: Fri May 29, 2009 5:39 pm
Location: Brighton, UK
Contact:

Re: Manhattan Analog 'Mix' - Build Thread

Post by Monobass » Wed Aug 28, 2013 4:25 pm

Funky40 wrote:
when do you expect to get mix back in stock ? so +- weeks
wanted to order some days ago.......need
I will restock it at some point, but not within the next two months. Negativspace has PCBs and panels in stock though I think.
Thonk - CLICK HERE - Modular Synth DIY + Eurorack Accessories Store

User avatar
joshuagoran
Wiggling with Experience
Posts: 363
Joined: Tue Apr 09, 2013 9:28 am
Location: NE Ohio, USA

Re: Manhattan Analog 'Mix' - Build Thread

Post by joshuagoran » Wed Aug 28, 2013 5:09 pm

Funky40 wrote:
when do you expect to get mix back in stock ? so +- weeks
wanted to order some days ago.......need
Synthcube definitely has PCB/panel combos!

I just ordered one a few weeks ago. :bacon:

User avatar
synthcube
you will be assimilated
Posts: 2131
Joined: Wed Dec 21, 2011 6:42 pm
Location: Boston
Contact:

Post by synthcube » Wed Aug 28, 2013 5:20 pm

Not nearly as nice as thonk's kit, but at least it's a start

http://synthcube.com/cart/index.php?rou ... uct_id=212
facebook: https://www.facebook.com/2SynthCube

synthcube webstore www.synthcube.com/cart
music from outer space: www.musicfromouterspace.com
blacet research: www.blacet.com
MOTM DIY Analog Synthesizers: www.motmsynthesizers.com
music from outer space euro smt: www.mfoseuro.com

User avatar
jules
Ultra Wiggler
Posts: 841
Joined: Wed Jun 23, 2010 6:27 am

Post by jules » Wed Aug 28, 2013 5:45 pm

If anyone's got a couple of PCBs, I'll be glad to buy them.
Dieter: "who needs all this??!!??"
tak poo-poom

User avatar
joshuagoran
Wiggling with Experience
Posts: 363
Joined: Tue Apr 09, 2013 9:28 am
Location: NE Ohio, USA

Post by joshuagoran » Sat Oct 12, 2013 10:47 pm

SmallBear is out of 50k audio taper pots...anyone have another US source or a tip on whether another value will work equally well?

User avatar
Monobass
thonk.co.uk
Posts: 8817
Joined: Fri May 29, 2009 5:39 pm
Location: Brighton, UK
Contact:

Post by Monobass » Sun Oct 13, 2013 1:31 am

With smallbear and banzai being the only stockists for these you have to cast your net further afield often .. In stock in Germany

http://www.banzaimusic.com/Alpha-9-PC-NUT-50k-log.html

The wait for restock on these can be months at a time
Thonk - CLICK HERE - Modular Synth DIY + Eurorack Accessories Store

User avatar
negativspace
Manhattan Analog
Posts: 6576
Joined: Tue Apr 13, 2010 2:50 am
Location: Manhattan, KS, USA
Contact:

Post by negativspace » Sun Oct 13, 2013 6:03 am

According to my last status-check, the 50K audio should be back in stock any day now. Waitin' on the boat...

User avatar
makers
Veteran Wiggler
Posts: 692
Joined: Wed Mar 20, 2013 1:54 pm

Post by makers » Fri Oct 18, 2013 8:13 am

synthcube wrote:Not nearly as nice as thonk's kit, but at least it's a start

http://synthcube.com/cart/index.php?rou ... uct_id=212
Is there a BOM for this PCB? I've probably not looked hard enough and I know it's only a handful of parts.

Cablebasher
Wiggling with Experience
Posts: 399
Joined: Sat Aug 03, 2013 6:51 am
Location: England, UK.

Post by Cablebasher » Fri Oct 18, 2013 8:24 am

Yes, I too would like a BOM/

In fact, has anyone got a link to a shopping cart with all the components in it?

Or indeed a link to the best online store (i am UK based) to buy the bits from.

This will be my first project not from a kit with all parts and I am a little weary of ordering the wrong bits.

Thanks muchly.

User avatar
negativspace
Manhattan Analog
Posts: 6576
Joined: Tue Apr 13, 2010 2:50 am
Location: Manhattan, KS, USA
Contact:

Post by negativspace » Fri Oct 18, 2013 1:44 pm

I kinda hate to take the lazy way out... but if you check the Thonk instruction .pdf there is a BOM on the second page. :hide:

(Steve's a superhero!)

Post Reply
