Colored Knobs

Post by UltraViolet » Sun Jul 07, 2019 4:30 pm

Has anyone ever used different knob colors to indicate what the knob controls?

User avatar
papz
Super Deluxe Wiggler
Posts: 3121
Joined: Sat May 18, 2013 6:52 pm
Location: in a suitcase
Contact:

Post by papz » Sun Jul 07, 2019 4:35 pm

EMS :mrgreen:

Finest EMS gear service and Music Easel/208 goodies

I'm not a synths dealer and I'm not aware of an inexpensive Synthi secret market, please don't ask me if I know one for sale.
I don't offer support of any kind to people attempting to build clones of EMS equipment.

User avatar
sduck
experimental use of gravity
Posts: 13612
Joined: Wed Feb 18, 2009 6:03 pm
Location: Vortepexaion, TN, USA

Post by sduck » Sun Jul 07, 2019 9:31 pm

And of course Mutable Instruments did it for a while. And Make Noise to some extent.
flickr cloud of sound touyube NOT A MODERATOR ANYMORE

User avatar
cornutt
Fig juggler
Posts: 1362
Joined: Sun Jan 25, 2009 10:06 pm
Location: Rocket City USA

Post by cornutt » Sun Jul 07, 2019 9:59 pm

Look at Rex Coil 7's build threads in the 5U forum.
Sequence 15 -- sequence15.blogspot.com

User avatar
BugBrand
Knowledge of Bugs
Posts: 7258
Joined: Tue Jul 15, 2008 11:59 am

Post by BugBrand » Mon Jul 08, 2019 4:05 am


Yes, of course.
& sockets too.

User avatar
papz
Super Deluxe Wiggler
Posts: 3121
Joined: Sat May 18, 2013 6:52 pm
Location: in a suitcase
Contact:

Post by papz » Mon Jul 08, 2019 6:25 am

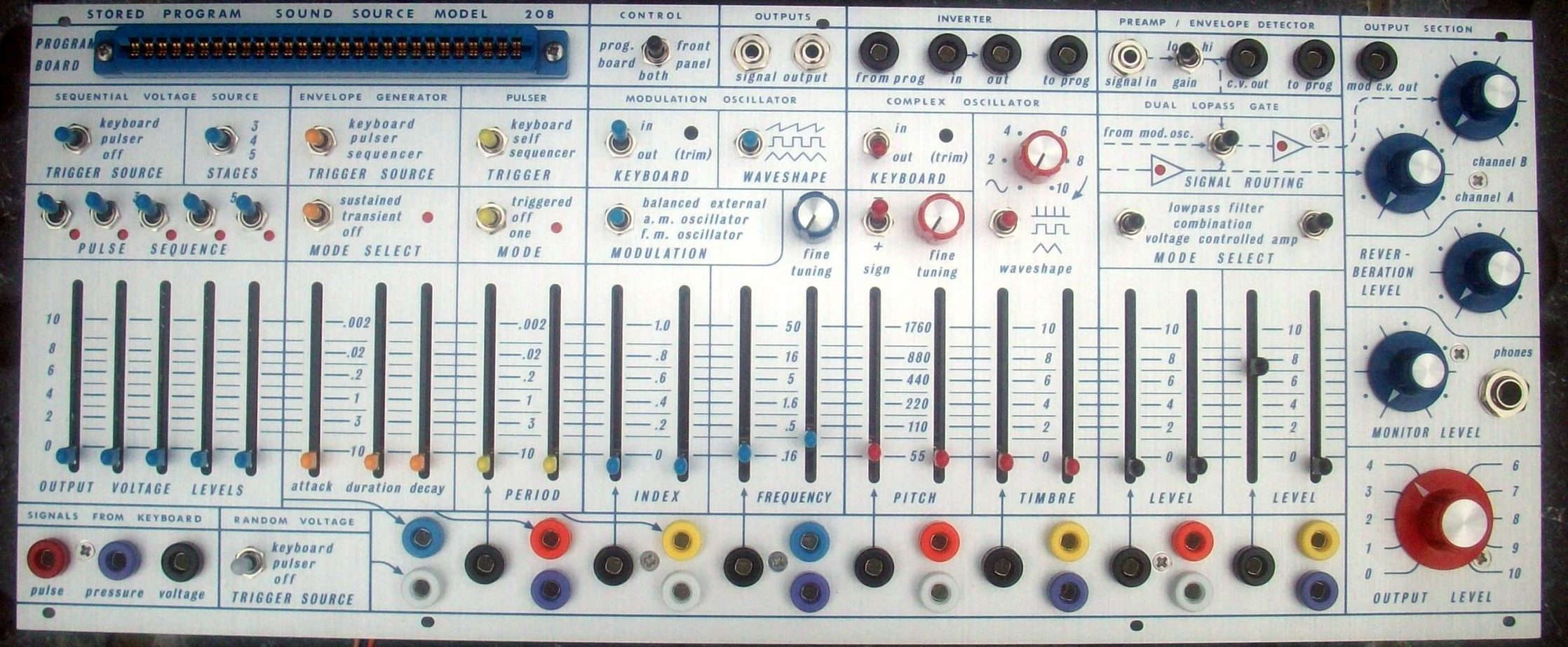

Sliders also...

Finest EMS gear service and Music Easel/208 goodies

I'm not a synths dealer and I'm not aware of an inexpensive Synthi secret market, please don't ask me if I know one for sale.
I don't offer support of any kind to people attempting to build clones of EMS equipment.

User avatar
Dave Peck
Super Deluxe Wiggler
Posts: 3396
Joined: Thu Mar 24, 2011 1:22 pm
Location: SF bay area

Post by Dave Peck » Mon Jul 08, 2019 1:07 pm

papz wrote:Sliders also...
Another color-coded slider cap example:




User avatar
cptnal
Super Deluxe Wiggler
Posts: 3747
Joined: Wed Jun 14, 2017 2:48 am
Location: People's Republic of Scotland

Post by cptnal » Mon Jul 08, 2019 2:42 pm

It'd be pretty tricky in the Euro realm, with the diversity of knobs around. I've certainly gone the other way and made some of mine more the same recently. And I'm not the only one, apparently. There's even a special Modulargrid faceplate for those who've swapped their blue Maths knobs for white ones. :goo:

Edit: Apparently Maths is shipping with white knobs these days. Who knew? :despair:
Last edited by cptnal on Wed Jul 10, 2019 5:14 am, edited 1 time in total.

User avatar
Pelsea
Veteran Wiggler
Posts: 734
Joined: Thu Apr 19, 2018 11:46 am
Location: Santa Cruz CA
Contact:

Post by Pelsea » Mon Jul 08, 2019 3:09 pm

Also Mackie mixers-- black for pan, blue for EQ, red for sends, and white for various inputs.

Note that color coding is used different ways:
• by function, system-wide
• by function on individual modules
• to identify modules
• to mark signal path

I occasionally add splashes of paint to mark things.
Books and tutorials on modular synthesis at http://peterelsea.com
Patch responsibly-
pqe

User avatar
Hanz
Analogue Avenger
Posts: 1263
Joined: Sat Oct 02, 2010 10:22 am
Location: my tiny universe

Post by Hanz » Tue Jul 09, 2019 11:21 am

Factory default Analogue Systems knob color coding (which I actually think inherits EMS color scheme):
White for audio/signal paths, grey for CV/control, blue for frequency/clocks, red for ADSR, green for wave shape/width, yellow for res/slew/pan and orange for anything else.

(That is, before I replaced all that with Davies 1900’s :D)
“...I am merely a conduit, a kind of big hairy tool. I am just a plastic funnel connected to a Moog...”

User avatar
UltraViolet
Veteran Wiggler
Posts: 555
Joined: Fri Dec 14, 2018 7:10 pm
Location: Edinburg, Ohio
Contact:

Post by UltraViolet » Tue Jul 09, 2019 5:24 pm

Hanz wrote:Factory default Analogue Systems knob color coding (which I actually think inherits EMS color scheme):
White for audio/signal paths, grey for CV/control, blue for frequency/clocks, red for ADSR, green for wave shape/width, yellow for res/slew/pan and orange for anything else.

(That is, before I replaced all that with Davies 1900’s :D)
Thank you to all. This seems to be the closest thing to a standard. EMS seemed to use black knobs for volume/level. Since what I am doing can't use black (color is ring around the black knob that indicates the setting) will have to change that to something else (maybe violet :hihi: ).

User avatar
Jay F.
Common Wiggler
Posts: 103
Joined: Mon Jul 17, 2017 12:20 pm
Contact:

Post by Jay F. » Wed Jul 10, 2019 2:04 am

Hi,

I did this some time ago.


Rule of thumb concerning knobs color on my home made modules :
- light grey / white : audio
- black (or dark grey) : CV attenuators
- colored (red/green/blue/...) : synth parameter
Above : Blue = VCO, Green = ADSR, Yellow = LFO, Red = VCF.
"We are born naked, wet and hungry. Then things get worse."
https://growyoursynth.blogspot.be/

User avatar
arthurdent
Veteran Wiggler
Posts: 603
Joined: Fri Nov 25, 2016 3:21 pm
Location: Ohio, along the North Coast

Post by arthurdent » Wed Jul 10, 2019 7:47 am

I have about 50 modules, 33 of which have knobs on them (the others are mults, S&H, etc). I've only changed the knobs from standard on two of them. I have the Radio Music and the Chord Organ from MTM, they're exactly the same module except for the programming of the Teensy. When I ordered them, I got the black faceplate and yellow knobs & pushbutton for the RM and the silver faceplate with red knobs & pushbutton for the CO. The rest of the modules are as-is, way too many knobs and way too many variety of knobs on the others.

Schrank
Common Wiggler
Posts: 119
Joined: Thu Apr 19, 2018 1:40 pm
Location: Switzerland

Post by Schrank » Wed Jul 10, 2019 1:35 pm

cptnal wrote:
Edit: Apparently Maths is shipping with white knobs these days. Who knew? :despair:
I think all the make noise modules come with white knobs now, they changed it somewhen at the beginning of the year.

User avatar
Noha
Veteran Wiggler
Posts: 503
Joined: Fri Sep 09, 2011 3:50 pm
Location: Main Street

Post by Noha » Wed Jul 10, 2019 11:51 pm

yes, i've done this on a number of modules, including most of the MakeNoise and Intellijel ones. I think it helps to unify the aesthetic of the system and also works to make navigation of the interface more intuitive.


User avatar
Rex Coil 7
Super Deluxe Wiggler
Posts: 6385
Joined: Thu Nov 29, 2012 11:29 am
Location: Captain Of Outer Space

Post by Rex Coil 7 » Thu Jul 11, 2019 12:48 am


Never Quit, Die Falling Forward
5U PROJECT - (skip pages 4 through 6, boring junk) ... https://www.muffwiggler.com/forum/viewt ... highlight=

User avatar
Fallen_lassen
Wiggling with Experience
Posts: 269
Joined: Wed Jan 30, 2013 7:35 am
Location: Zaandoom

Post by Fallen_lassen » Thu Jul 11, 2019 4:24 am

Teenage engineering OP-1 OP -Z. color coded to the extreme.

User avatar
BugBrand
Knowledge of Bugs
Posts: 7258
Joined: Tue Jul 15, 2008 11:59 am

Post by BugBrand » Thu Jul 11, 2019 4:49 am

While it is nice to add some colour to break things up, I don't see much in the way of tying colours to functions in some sort of standard.

My way:
Red for main function control + Orange as backup
Blue for CV modulation depth
Yellow and Green for audio amplitudes

And sockets:
Yellow / Green for Audio path Input/Output
Blue / Red for Control path Input/Output

User avatar
UltraViolet
Veteran Wiggler
Posts: 555
Joined: Fri Dec 14, 2018 7:10 pm
Location: Edinburg, Ohio
Contact:

Post by UltraViolet » Thu Jul 11, 2019 5:53 am

BugBrand wrote: And sockets:
Yellow / Green for Audio path Input/Output
Blue / Red for Control path Input/Output
Thanks. This seems to be a better use of colors for the sockets than white/gray.
