Post by FetidEye » Tue Sep 20, 2016 9:11 am

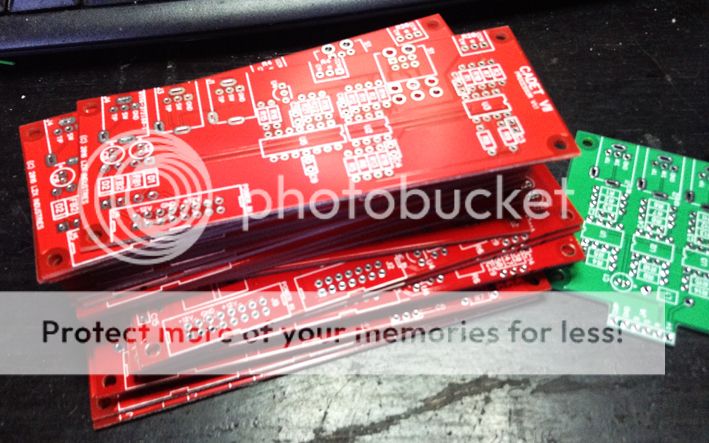

this just came in: (system21 + trinsRGB outputs exp)


:party: :party: :party: :party: :sb: :sb: :nana: :nana:

User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Tue Sep 20, 2016 6:45 pm

and I see that there are a lot more cadets coming out !

Cadet X Multiplier
Cadet XI Noise Generator
Cadet XII Wavefolder/Freq Doubler
Cadet XIII 3-Input Mixer
Cadet XIV Gamma Shaper


awesome!

User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Fri Oct 07, 2016 6:47 am

The Owner Manual of the Cadet I Sync Generator is available from the LZX website!!

https://www.lzxindustries.net/documenta ... M-V1.0.pdf

This answers a lot of question!
-About how to patch incoming external signals so that they sync with the video synth
-Basic info on Genlock
-How to connect the sync (flatcables) on the back of the modules.
and much more.

The manual is written very clearly and describes the functions of all elements of the PCB.

Awesome! :sb:

User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Fri Oct 07, 2016 8:10 am

nevermind, question asked in better thread

User avatar
Veqtor
Super Deluxe Wiggler
Posts: 2193
Joined: Fri Nov 14, 2008 6:25 pm
Location: Stockholm, Sweden

Post by Veqtor » Wed Oct 12, 2016 4:00 am

Could a cadet sync generator be used to create sync for Expedition series modules?

User avatar
onurkalaycioglu
Veteran Wiggler
Posts: 570
Joined: Fri Jun 07, 2013 5:01 pm
Location: Chicago, IL

Post by onurkalaycioglu » Wed Oct 26, 2016 3:29 am

sync24 wrote:
sync24 wrote:hello :)

does anyone have any of the switches needed for the Sync Gen?
Mouser are out... I only need one
http://www.mouser.co.uk/Search/ProductD ... key10TF230

Alternatively, I'm going to hardwire this as I wont be using any NTSC stuff...
'could still do with some of these switches as I notice they are needed for the VCO...
anyone got three (i haven't got the PCB or anything, though, just thinking ahead)?

did anyone ever figure out where to buy these individual switches? as the moq is 100. need a couple for the vco pcbs im about to buy. couldnt find anything on mouser that was comparable enough right angle wise.

but i did find these, which should do the trick although they arent right angle. i think the thread width is the same if the hole on the vco panels are similar to the processors panel. strange the datasheet for the 10TF230 doesnt have a thread width or panel mounting drill dimensions.

108-0042-EVX

only place i could find the right part online was some place called swatee electronics. which i think is in the czech republic. but that doesnt really help me as im in chicago... but could help some other wigglers out that way.
Żłób modules, pcbs, and kits available at:
http://zlobmodular.com/

My Eurorack compositions for vinyl "Tholins of Kharon" is out 11/23/19
http://zlobmodular.com/music/

Solo modular synth recordings using Buchla, Serge, and Eurorack:
https://onurzlobnicki.bandcamp.com/album/

Eps by my metal band
http://burningchurches.bandcamp.com/releases

User avatar
makers
Veteran Wiggler
Posts: 676
Joined: Wed Mar 20, 2013 1:54 pm

Post by makers » Mon Oct 31, 2016 9:38 pm

I just finished my first Cadet! The Cadet IX VCO build was straight forward and works well with sync from my Visual Cortex.

I used this switch for sync. It seems to be very close to the Mountain 10TF230 switch in the BOM. It works fine and looks fine with the other switch but does not sit flush with the PCB when you solder it in.

http://www.mouser.com/Search/ProductDet ... 012S2A2G30

User avatar
Dirty_Bill
Ultra Wiggler
Posts: 898
Joined: Fri May 11, 2012 2:15 pm
Location: Alameda, The Island City

Post by Dirty_Bill » Tue Nov 01, 2016 12:44 am

cool! I've been tempted by the oscillators but I am running out of rack space. Post some demos when you can!

User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Sat Nov 12, 2016 5:38 pm

:party:
First tests of the sync generator + video input + rgb encoder were succesfull!
(mostly)

I have to check the contrast pot, because that seemed to do nothing.
For the rest all sync signals are present, all color / luma outputs work and video was passed through.

Awesome!

update: finished + tested the Ramps module, shapes and colors :goo:

now to make cool panels!
I've chosen to use banana's for patching and BNC for video in+outputs
pictures will follow soon :sb:

maggan
Learning to Wiggle
Posts: 47
Joined: Mon May 02, 2016 4:20 am
Location: Sweden

Post by maggan » Sun Nov 13, 2016 4:02 pm

FetidEye wrote:this just came in: (system21 + trinsRGB outputs exp)


:party: :party: :party: :party: :sb: :sb: :nana: :nana:
No patch? Otherwise it looks like the order I am putting in except I am waiting for them above X pcb:s as well. :bananaguitar:

User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Mon Nov 14, 2016 2:34 am

what do you mean by "no patch"?

maggan
Learning to Wiggle
Posts: 47
Joined: Mon May 02, 2016 4:20 am
Location: Sweden

Post by maggan » Tue Nov 15, 2016 5:25 am


User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Tue Nov 15, 2016 6:33 am

patch is a misleading term :hihi:

no I did not get it with the system 21 order.
but i'll order more soon i guess, with the 5 upcoming new cadet modules / pcb's, then i'll add it !!

maggan
Learning to Wiggle
Posts: 47
Joined: Mon May 02, 2016 4:20 am
Location: Sweden

Post by maggan » Tue Nov 15, 2016 8:58 am

FetidEye wrote:patch is a misleading term :hihi:
Exactly my point! :hyper:

User avatar
Nino
Wiggling with Experience
Posts: 454
Joined: Tue Dec 29, 2015 10:45 pm

Post by Nino » Tue Nov 15, 2016 10:44 am

that patch is so neat :cloud:

gzifcak
Common Wiggler
Posts: 112
Joined: Sun Nov 23, 2008 2:03 pm

Post by gzifcak » Thu Nov 17, 2016 6:55 pm

I had a 2u hole in my video case so I stuffed 16 Cadet boards in a blank panel:
3 video inputs
3 keyers
3 faders
3 multipliers
2 scalers
2 VCOs

Last edited by gzifcak on Sat Nov 19, 2016 12:23 am, edited 1 time in total.

User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Fri Nov 18, 2016 4:47 am

wow, that is pretty!

User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Tue Nov 22, 2016 8:03 am

I've just tested the first VCO, Works too!!

I've found a lot of awesome knobs on an old mixer.
very large, but colorful and vintage.
Downside is that I have to wire everything. Oh well
(or else the knobs won't fit, the pots would be too close together)

User avatar
frankaponte
Common Wiggler
Posts: 168
Joined: Mon Aug 19, 2013 5:05 pm
Location: South Central Pennsyltucky
Contact:

Post by frankaponte » Tue Nov 22, 2016 8:35 pm

I have built 4 or 5 different modules so far and they have all been fun builds. Also, many of the same values of resistors and caps are used over and over, so if you buy a bag of a parts, you can use them across just about all of the modules. Really nice modules to build. In the middle of putting together a little LCD module for the rack, so I should be able to start making some images soon.
Tsyklon Labs [modules and stuff]
www.tsyklon.com
www.instagram.com/tank_profane

User avatar
makers
Veteran Wiggler
Posts: 676
Joined: Wed Mar 20, 2013 1:54 pm

Post by makers » Wed Nov 30, 2016 3:06 pm

I just found this on the LZX VI Fader assembly notes:

"We recommend you avoid socketing the ICs. Capacitance in the sockets can affect higher bandwidth circuitry more than it would in audio applications."

I added sockets to my VCO builds. Does anyone have any insight? Should I try to remove the sockets from my build? How would a capacitance problem behave?

User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Wed Nov 30, 2016 4:02 pm

mh. I missed this too.


Let's ask the developers then. I'll email Lars

User avatar
FetidEye
demonic space drone
Posts: 2101
Joined: Mon Dec 06, 2010 5:00 pm
Location: Red Zone
Contact:

Post by FetidEye » Wed Nov 30, 2016 4:51 pm

reply:
IC sockets add capacitance to the connections to the pins in the circuit.
It could potentially limit bandwidth or add ringing/oscillation to the circuit.
In practical terms, if everything looks good to you, you probably don't have to worry.
But if you see any strange noise or ringing, that could be the source.

maggan
Learning to Wiggle
Posts: 47
Joined: Mon May 02, 2016 4:20 am
Location: Sweden

Post by maggan » Thu Dec 01, 2016 7:06 am

FetidEye wrote:and I see that there are a lot more cadets coming out !

Cadet X Multiplier
Cadet XI Noise Generator
Cadet XII Wavefolder/Freq Doubler
Cadet XIII 3-Input Mixer
Cadet XIV Gamma Shaper


awesome!
I am waiting to place my big order on pcb:s until these are out, anyone know the plan on these?

User avatar
Dirty_Bill
Ultra Wiggler
Posts: 898
Joined: Fri May 11, 2012 2:15 pm
Location: Alameda, The Island City

Post by Dirty_Bill » Sat Dec 03, 2016 3:23 pm

maggan wrote:
FetidEye wrote:and I see that there are a lot more cadets coming out !

Cadet X Multiplier
Cadet XI Noise Generator
Cadet XII Wavefolder/Freq Doubler
Cadet XIII 3-Input Mixer
Cadet XIV Gamma Shaper


awesome!
I am waiting to place my big order on pcb:s until these are out, anyone know the plan on these?
Some are awaiting rework - Lars didn't have a date last I spoke with him, but feel free to reach out to him and ask!

User avatar
ehafh
Common Wiggler
Posts: 249
Joined: Thu Jan 22, 2015 11:07 pm
Location: illinois, usa
Contact:

Post by ehafh » Sun Dec 04, 2016 7:20 pm

with the cadet scaler, do i basically just want a bunch of 5v to 1v if i would like to use my audio modules with the video stuff?
