TC June 60 Chorus

Post by MindMachine » Sat Jun 01, 2019 11:26 pm

Likely that this has been mentioned, but I only looked down a page.

Tremendous value. Amy owners? My only current 'chorus' is the Waza DC pedal and a couple of the Behringer plastic clones. And I have an old Peavey Dual Clock Stereo Chorus, which is weird.
FS: A-140-2 Dual VC ADSR, Erica VCA 2, A/DA Final Phase, SP-555 Sampler and more - CHEAP!!!
https://www.muffwiggler.com/forum/viewt ... highlight=
WTB: Kurzweil Rumour (or trade for Mangler)

User avatar
CosmicFlight
Common Wiggler
Posts: 114
Joined: Thu Mar 06, 2014 2:55 pm
Location: France

Post by CosmicFlight » Wed Jun 05, 2019 3:57 pm

Sounds like phase issue on the TC youtube demo :confused:
Some people thinks it is because the mono input
I don't know, but maybe worth a try for that price

User avatar
PrimateSynthesis
Super Deluxe Wiggler
Posts: 3333
Joined: Tue Mar 15, 2011 6:50 pm

Post by PrimateSynthesis » Wed Jun 05, 2019 4:13 pm

I haven't had a Juno 60 in ages, and I'm too lazy to get out of my chair go downstairs and look at the service notes, but isn't the output of the summing amp, and therefore the input to the chorus, mono?
FS: Rare Morley Rotating Wah Oil Can Delay!

Since the forum has gone back to being 100% community funded, I've decided to donate half the proceeds from the Morley Rotating Wah this thread is supposedly selling :miley:

https://www.muffwiggler.com/forum/viewt ... p?t=131332

User avatar
JimY
Common Wiggler
Posts: 231
Joined: Wed Nov 09, 2016 10:03 am
Location: Middle of Wales

Post by JimY » Sun Jun 09, 2019 3:57 am

As far as I can tell, the original is x2 BBD systems with a common mono input. Type I and II are the same slow chorale but at different speeds of the common LFO.

Together I + II are a faster & shallower tremulant. However, the 2 BBD's are then modulated at 180deg phase difference from the LFO which effect will only work properly with separated stereo output.

In all modes, the dry input is mixed with each chorus to an output.

If only one output is plugged in, a fixed mono mix goes to that output.

Note that the original used the MN3009 256 stage BBD and replacement with the more common 1024 stage means either clocking the chips x4 faster or sounding different. I've not been able to find which BBD is used in those clones.

User avatar
PrimateSynthesis
Super Deluxe Wiggler
Posts: 3333
Joined: Tue Mar 15, 2011 6:50 pm

Post by PrimateSynthesis » Sun Jun 09, 2019 4:32 pm

JimY wrote: Note that the original used the MN3009 256 stage BBD and replacement with the more common 1024 stage means either clocking the chips x4 faster or sounding different. I've not been able to find which BBD is used in those clones.
Clocking 1024 stage chips x4 faster would sound different even if the anti-aliasing filters were the same frequency.
FS: Rare Morley Rotating Wah Oil Can Delay!

Since the forum has gone back to being 100% community funded, I've decided to donate half the proceeds from the Morley Rotating Wah this thread is supposedly selling :miley:

https://www.muffwiggler.com/forum/viewt ... p?t=131332

User avatar
JimY
Common Wiggler
Posts: 231
Joined: Wed Nov 09, 2016 10:03 am
Location: Middle of Wales

Post by JimY » Tue Jun 11, 2019 9:30 am

Xvive sell MN3009
http://www.xviveaudio.com/productInfo.asp?id=368
... still, word is that it isn't meant to sound right anyway!
http://www.synthanatomy.com/2019/05/tc- ... horus.html
It's very cheap, but it isn't the real deal.

User avatar
PrimateSynthesis
Super Deluxe Wiggler
Posts: 3333
Joined: Tue Mar 15, 2011 6:50 pm

Post by PrimateSynthesis » Tue Jun 11, 2019 2:17 pm

Then I'm guessing it's digital. There are plenty of pedals out there that are basically plug-ins in stomp boxes.
FS: Rare Morley Rotating Wah Oil Can Delay!

Since the forum has gone back to being 100% community funded, I've decided to donate half the proceeds from the Morley Rotating Wah this thread is supposedly selling :miley:

https://www.muffwiggler.com/forum/viewt ... p?t=131332

DMR
Wiggling with Experience
Posts: 380
Joined: Sat Jan 04, 2014 1:05 pm

Post by DMR » Tue Jun 11, 2019 9:38 pm

I don't think this is digital, but rather a poorly produced analog emulation. I assume it uses Cool Audio BBD chips since both TC Electronic and Cool Audio are Behringer sub-brands.

User avatar
thetwlo
Super Deluxe Wiggler
Posts: 4659
Joined: Wed Apr 16, 2008 4:05 pm
Location: East Bay, CA US

Post by thetwlo » Tue Jun 11, 2019 9:40 pm

PrimateSynthesis wrote:Then I'm guessing it's digital. There are plenty of pedals out there that are basically plug-ins in stomp boxes.
it is NOT digital

User avatar
PrimateSynthesis
Super Deluxe Wiggler
Posts: 3333
Joined: Tue Mar 15, 2011 6:50 pm

Post by PrimateSynthesis » Wed Jun 12, 2019 2:51 pm

DMR wrote:I don't think this is digital, but rather a poorly produced analog emulation. I assume it uses Cool Audio BBD chips since both TC Electronic and Cool Audio are Behringer sub-brands.
Well, the easiest way to find out is for someone who has one to open it up and look at it.
FS: Rare Morley Rotating Wah Oil Can Delay!

Since the forum has gone back to being 100% community funded, I've decided to donate half the proceeds from the Morley Rotating Wah this thread is supposedly selling :miley:

https://www.muffwiggler.com/forum/viewt ... p?t=131332

User avatar
JimY
Common Wiggler
Posts: 231
Joined: Wed Nov 09, 2016 10:03 am
Location: Middle of Wales

Post by JimY » Wed Jun 12, 2019 3:45 pm

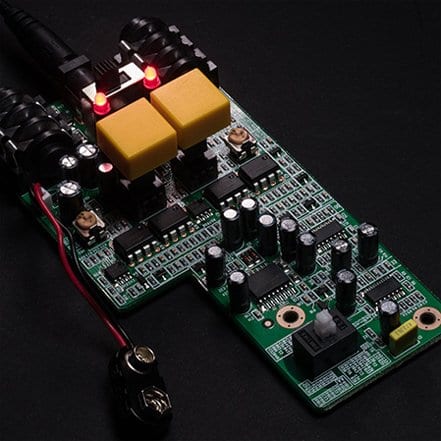

The x4 DIL-8 chips across the centre look likely to be the required MN series BBD and clock chips (2 each).

I can't see the part numbers. Cool Audio only publicly list their equivalent of the MN3007 1024 stage BBD, but that doesn't mean they aren't producing the shorter delay devices now purely for internal consumption. The Roland Vocoder/strings keyboard Behringer have made ought to have 512 stage IIRC in its ensemble chorus.

The rest of the chips could be dual and quad op-amps.

Not sure what the wider 16pin smd chip above the bypass switch is.

User avatar
PrimateSynthesis
Super Deluxe Wiggler
Posts: 3333
Joined: Tue Mar 15, 2011 6:50 pm

Post by PrimateSynthesis » Wed Jun 12, 2019 4:00 pm

JimY wrote: Not sure what the wider 16pin smd chip above the bypass switch is.
I'm guessing it's an analog switch chip to do the bypassing.
FS: Rare Morley Rotating Wah Oil Can Delay!

Since the forum has gone back to being 100% community funded, I've decided to donate half the proceeds from the Morley Rotating Wah this thread is supposedly selling :miley:

https://www.muffwiggler.com/forum/viewt ... p?t=131332

User avatar
JimY
Common Wiggler
Posts: 231
Joined: Wed Nov 09, 2016 10:03 am
Location: Middle of Wales

Post by JimY » Thu Jun 13, 2019 6:30 am

It claims to true bypass and that clunky looking keyswitch could well be latching although those never look strong enough for footwork to me.

But you could still be right about the analogue switch. The Roland original used JFET switches to change the modulation circuits and the chip might be replacing those.
