Serge power supply options for multi-panel (=>3) system?

Post by Sir Ruff » Tue Oct 29, 2019 7:35 pm

I know about the R*S supplies, but I would like to not have to modify anything that currently has a molex connector (also trying to keep power running out the rear of boat). Are there any other bigger PSUs or power distribution options? Elby? (couldn't find anything specific on their site). I should also add that I need something pre-built.

Gandalf
Common Wiggler
Posts: 151
Joined: Thu Nov 29, 2018 8:59 pm
Location: Australia

Re: Serge power supply options for multi-panel (=>3) syst

Post by Gandalf » Tue Oct 29, 2019 8:12 pm

Sir Ruff wrote:I know about the R*S supplies, but I would like to not have to modify anything that currently has a molex connector (also trying to keep power running out the rear of boat). Are there any other bigger PSUs or power distribution options? Elby? (couldn't find anything specific on their site). I should also add that I need something pre-built.
ELBY Designs PSU-10 is designed for 3 boats.
Their unit is terminated with 3x 4-pin MIC connectors (like they use on CB radios) so it is just a matter of making a cable that terminates with whatever you need (the Elby boats have a mating 4-pin connector mounted on the bottom of the boat)
Last edited by Gandalf on Tue Oct 29, 2019 8:23 pm, edited 1 time in total.

Sir Ruff
Super Deluxe Wiggler
Posts: 2032
Joined: Tue Jun 02, 2009 6:23 pm
Location: Philadelphia
Contact:

Re: Serge power supply options for multi-panel (=>3) syst

Post by Sir Ruff » Tue Oct 29, 2019 8:20 pm

Gandalf wrote:
Sir Ruff wrote:I know about the R*S supplies, but I would like to not have to modify anything that currently has a molex connector (also trying to keep power running out the rear of boat). Are there any other bigger PSUs or power distribution options? Elby? (couldn't find anything specific on their site). I should also add that I need something pre-built.
ELBY Designs PSU-10 is designed for 3 boats
Ok, thanks! clearly didn't look hard enough for this.

What do people use for four panels?

syncretism
Morbidly self-aware and liking it
Posts: 1522
Joined: Sun Jan 25, 2009 7:05 pm
Contact:

Post by syncretism » Tue Oct 29, 2019 9:42 pm

I can recommend builders who'll put together cabled with 4-pin XLR and 4-pin STS-styled connectors if you don't want to make your own.

Konstant Lab's Cihla is a nice one, and sturdily-built; I typically use it to power my Stroh panels, but it's worked fine with Serge, too.

My guess is that "1.5 amps" is probably accompanied by a disclaimer somewhere similar to R*S that you should shoot for maybe half that. This isn't ideal, but your selection of four panels may operate just fine; while the "Sing to Me" looks quite dense and perhaps draws more than a typical panel, the TKB you've asserted an interest in acquiring has very low power requirements.

For my own part, the wiring in my house seems to be a bigger issue than my power supplies.

There is of, course, Graham Hinton and presumably other higher-end options (and STS). I have no experience with those and cannot comment but the forum is filled with people praising his products.

Sir Ruff
Super Deluxe Wiggler
Posts: 2032
Joined: Tue Jun 02, 2009 6:23 pm
Location: Philadelphia
Contact:

Post by Sir Ruff » Tue Oct 29, 2019 10:08 pm

syncretism wrote:I can recommend builders who'll put together cabled with 4-pin XLR and 4-pin STS-styled connectors if you don't want to make your own.

Konstant Lab's Cihla is a nice one, and sturdily-built; I typically use it to power my Stroh panels, but it's worked fine with Serge, too.

My guess is that "1.5 amps" is probably accompanied by a disclaimer somewhere similar to R*S that you should shoot for maybe half that. This isn't ideal, but your selection of four panels may operate just fine; while the "Sing to Me" looks quite dense and perhaps draws more than a typical panel, the TKB you've asserted an interest in acquiring has very low power requirements.

For my own part, the wiring in my house seems to be a bigger issue than my power supplies.

There is of, course, Graham Hinton and presumably other higher-end options (and STS). I have no experience with those and cannot comment but the forum is filled with people praising his products.
thanks!

And totally :doh: here because I didn't realize that the 4-pin XLR jack was standard for Serge. In that case R*S becomes and option again. Where does one buy the XLR to molex connectors? This must be fairly standard? I didn't see any for sale on the Konstant Lab page...

syncretism
Morbidly self-aware and liking it
Posts: 1522
Joined: Sun Jan 25, 2009 7:05 pm
Contact:

Post by syncretism » Tue Oct 29, 2019 10:15 pm

Sorry, I meant that KL makes a nice PSU.
They might build you some cables if you bought a supply. Can’t hurt to ask. Otherwise, there’s a link to a post with all the Mouser parts in my previous reply.

Gandalf
Common Wiggler
Posts: 151
Joined: Thu Nov 29, 2018 8:59 pm
Location: Australia

Post by Gandalf » Tue Oct 29, 2019 10:15 pm

Sir Ruff wrote:
syncretism wrote:I can recommend builders who'll put together cabled with 4-pin XLR and 4-pin STS-styled connectors if you don't want to make your own.

Konstant Lab's Cihla is a nice one, and sturdily-built; I typically use it to power my Stroh panels, but it's worked fine with Serge, too.

My guess is that "1.5 amps" is probably accompanied by a disclaimer somewhere similar to R*S that you should shoot for maybe half that. This isn't ideal, but your selection of four panels may operate just fine; while the "Sing to Me" looks quite dense and perhaps draws more than a typical panel, the TKB you've asserted an interest in acquiring has very low power requirements.

For my own part, the wiring in my house seems to be a bigger issue than my power supplies.

There is of, course, Graham Hinton and presumably other higher-end options (and STS). I have no experience with those and cannot comment but the forum is filled with people praising his products.
thanks!

And totally :doh: here because I didn't realize that the 4-pin XLR jack was standard for Serge. In that case R*S becomes and option again. Where does one buy the XLR to molex connectors? This must be fairly standard? I didn't see any for sale on the Konstant Lab page...
Who said XLR was standard for Serge? They definitely weren't back in the 1970's when it started and it is only recently that SOME people have started using them

Sir Ruff
Super Deluxe Wiggler
Posts: 2032
Joined: Tue Jun 02, 2009 6:23 pm
Location: Philadelphia
Contact:

Post by Sir Ruff » Tue Oct 29, 2019 10:26 pm

Gandalf wrote:Who said XLR was standard for Serge? They definitely weren't back in the 1970's when it started and it is only recently that SOME people have started using them
what I mean is the connection on the power supply, not at the panel end. Doing a quick image search for PSUs I saw 4-pin XLRs across the board. But maybe I'm wrong? I've only ever used PS2As with hardwired cables with molex ends, never anything with a detachable cable (except for a stroh panel that used a supply with XLRs--I treated that as a bespoke supply in my mind, but I guess that's still basically Serge).

User avatar
luchog
Crazy Pony
Posts: 1143
Joined: Sat Nov 21, 2015 2:57 pm
Location: The Emerald City

Post by luchog » Wed Oct 30, 2019 4:39 pm

Sir Ruff wrote:
Gandalf wrote:Who said XLR was standard for Serge? They definitely weren't back in the 1970's when it started and it is only recently that SOME people have started using them
what I mean is the connection on the power supply, not at the panel end. Doing a quick image search for PSUs I saw 4-pin XLRs across the board. But maybe I'm wrong? I've only ever used PS2As with hardwired cables with molex ends, never anything with a detachable cable (except for a stroh panel that used a supply with XLRs--I treated that as a bespoke supply in my mind, but I guess that's still basically Serge).
XLR are the standard used by Random*Source and Konstant Lab for their Serge power supplies, for PS to boat; with the panel-to-distro power connections being MTA-156. STS uses the 4-pin Molex. Elby uses the 4-pin MIC. Not sure What Loudest Warning uses.

As has been noted in a different thread, Serge power is a bit of a mess, with no standardization.

I'm getting a R*S power supply (as soon as they finish making the bloody thing and ship it) for my STS single-panel Serge. I just picked up the bits from Digikey and made the XLR-to-Molex adapter myself.

User avatar
phineas
Common Wiggler
Posts: 105
Joined: Mon Mar 20, 2017 8:58 am
Location: Netherlands

Post by phineas » Thu Oct 31, 2019 4:01 am

You can get a psu with xlr-connectors for three boats (using the elby design as far as I know) from Loudest Warning.

User avatar
the bad producer
Super Deluxe Wiggler
Posts: 2601
Joined: Tue Mar 17, 2009 8:43 am
Location: Clapton Pond

Post by the bad producer » Thu Oct 31, 2019 4:47 am

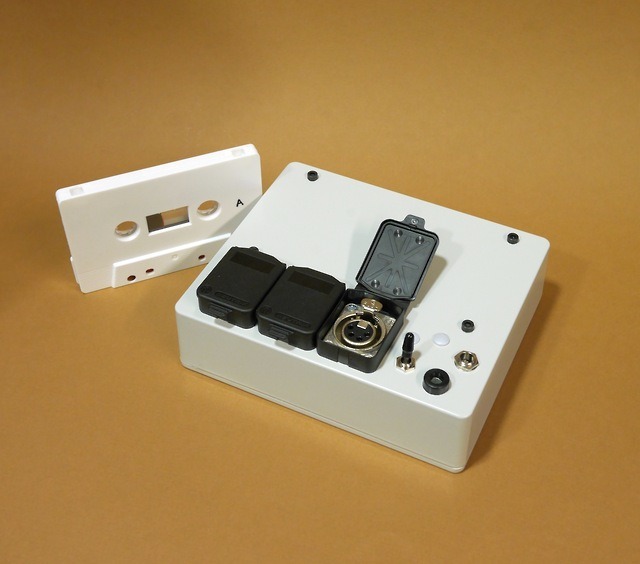

Yes, I build the Elby PSU-10 into boxes like this:


It is a great little portable PSU, switching with linear regulators on the outputs, uses laptop type charger so no mains involved inside, and will work anywhere in the world! This has been available for a long time already, and is cheaper than the new *RS* one - possibly nearly £100 cheaper if my maths is correct?!

A note regarding connectors - I use XLRs as most people I sell these to want XLRs (they already have things with XLR cables), but I can use Cliffcon etc. My power cables are split, the boats/panels have a cable popping out with a 'Serge' Molex connector which you plug into with an XLR-ended cable or any other cable with your choice of PSU connector (ie it is XLR to Molex).

I don't make 'Serge' power supplies as I don't only build Serge, not all 4U is Serge! The Elby PSU is available as +/-12V and +/-15V.

Gandalf
Common Wiggler
Posts: 151
Joined: Thu Nov 29, 2018 8:59 pm
Location: Australia

Post by Gandalf » Thu Oct 31, 2019 3:39 pm

If you don't mind making your own enclosure, the PSU-10B can be supplied as a pre-assembled PCB assembly (or as a kit) and could drive more than 3 boats and you can fit with your own choice of output connectors.
The standard store version is+/-12V but if you contact Elby they can provide a +/-15V version

Sir Ruff
Super Deluxe Wiggler
Posts: 2032
Joined: Tue Jun 02, 2009 6:23 pm
Location: Philadelphia
Contact:

Post by Sir Ruff » Thu Oct 31, 2019 6:21 pm

luchog wrote:I'm getting a R*S power supply (as soon as they finish making the bloody thing and ship it) for my STS single-panel Serge. I just picked up the bits from Digikey and made the XLR-to-Molex adapter myself.
thanks for explaining! guess it isn't so standardized as I imagined. I guess making your own converter cables isn't that hard, I just prefer the pro route wherever possible.
the bad producer wrote:Yes, I build the Elby PSU-10 into boxes like this:
cool! I have to reply to your email so I will ask about those.
Gandalf wrote:If you don't mind making your own enclosure, the PSU-10B can be supplied as a pre-assembled PCB assembly (or as a kit) and could drive more than 3 boats and you can fit with your own choice of output connectors.
The standard store version is+/-12V but if you contact Elby they can provide a +/-15V version
yeah, that's definitely beyond my abilities unfortunately.

User avatar
rampy
Common Wiggler
Posts: 205
Joined: Mon May 20, 2013 8:44 am
Location: d/fw

Post by rampy » Thu Oct 31, 2019 6:39 pm

I use a Power One HCC-15-3AG that I built into a Hammond enclosure with XLR output. It puts out 3A at +/-15V, and 3.4A at +/- 12v. Plenty of power for 4 DIY Serge Panels (NCS1, NCS2, Swamp, Sturm und Drang), and I plan on squeezing a TKB in there as well. I made cables that are 4 pin XLR on one end and Molex 4 pin connector on the synth end. Only downside is that it's fairly bulk and heavy. With that said, I would build it into a larger enclosure if I did it again, the wiring inside is a little tight.

User avatar
johnchantler
Wiggling with Experience
Posts: 295
Joined: Wed Dec 17, 2008 7:31 pm
Location: Stockholm, Sweden
Contact:

Post by johnchantler » Fri Nov 01, 2019 1:52 pm

anyone know what the height of the elby PSU is without the enclosure? I'm looking for something that can ideally fit inside a 1U rack unit...

Gandalf
Common Wiggler
Posts: 151
Joined: Thu Nov 29, 2018 8:59 pm
Location: Australia

Post by Gandalf » Fri Nov 01, 2019 3:02 pm

johnchantler wrote:anyone know what the height of the elby PSU is without the enclosure? I'm looking for something that can ideally fit inside a 1U rack unit...
Less than 15mm I think
