Banana Plugs VS Other Plugs

Post by southafrica » Thu Oct 13, 2011 12:07 pm

Hi

I'm currently busy building and designing my own modular synthesizer from scratch. One of the current design choices I'm facing is which connectors I should use in my system. 1/4" sockets and 3.5mm sockets both have two connectors on them whereas banana sockets only have one connector on the end of them. Why is this and are there any advantages/disadvantages of using banana plugs over the other formats?

Any help/comments/advice/feedback is greatly appreciated, thanks.

I don't know if this question has already been asked, I can't search yet until I've made a post.

User avatar
Electronic Battle
Wiggling with Experience
Posts: 359
Joined: Fri Mar 27, 2009 12:36 pm
Location: UK
Contact:

Post by Electronic Battle » Thu Oct 13, 2011 12:13 pm

4mm banana plugs are stackable in that you can plug one into the end of the other and so on ... each one is its own multiple. The are more robust than 3.5mm.

They are unshielded of course but, given that CVs don't need shielding and audio levels are usually high, this won't be a problem. Interfacing is easy enough via converting multiples (1/4" and 3.5mm and 4mm banana in parallel) and as long as your kit is all well-earthed to one another, I think it is the best system.

Others can provide better experience though.

User avatar
Luka
Super Deluxe Wiggler
Posts: 5374
Joined: Tue Jul 15, 2008 9:15 am
Location: melbourne

Post by Luka » Thu Oct 13, 2011 12:22 pm

Now that there is stackable minijacks i think minijack has become a great option. Imo 1/4' jacks make it hard to have dense designs due to the size (length) of the plugs and the inability to put use pots if they are too close. Normalisation is a huge benefit for dense designs.

I went with jonson / pomona banana route and am happy but it can seem expensive at times to buy new cables and im yet to find other brands i really like for my system.

Pfurmel
Super Deluxe Wiggler
Posts: 1570
Joined: Wed Mar 31, 2010 12:57 pm
Location: Ireland
Contact:

Post by Pfurmel » Thu Oct 13, 2011 12:35 pm

Electronic Battle wrote:4mm banana plugs are stackable in that you can plug one into the end of the other and so on ... each one is its own multiple. The are more robust than 3.5mm.

They are unshielded of course but, given that CVs don't need shielding and audio levels are usually high, this won't be a problem. Interfacing is easy enough via converting multiples (1/4" and 3.5mm and 4mm banana in parallel) and as long as your kit is all well-earthed to one another, I think it is the best system.

Others can provide better experience though.
I agree with this. The design really grew on me after getting a Serge creature, it is such a simple solution. It is great for DIY purposes too due to halving the amount of wires/traces needed per jack. I like them so much I have started to convert my euro system too, as have a good few other wigglers here.

User avatar
southafrica
Common Wiggler
Posts: 219
Joined: Thu Oct 13, 2011 11:58 am
Location: Calgary, Canada

Post by southafrica » Thu Oct 13, 2011 1:17 pm

Thanks for the info everyone and the quick responses. I'm not too concerned with the connectors being stackable or not, I see Tip Top (I think it was them) have cables with stackable 3.5mm connectors. I'll play around with stackable cables later but it's nice to see that that option is available.

I was just wondering if there were any major differences between the connectors but it doesn't sound like there are really. I brought this up because I wasn't too sure and I saw there was quite a price difference between sockets for banana jacks and the other formats (70c for a banana socket that you can panel mount vs $3 or more for sockets you can panel mount for the other formats). Normally when something is a lot cheaper it's normally not a good sign so you can understand my concern. But like Electronic Battle said above, as long as all my kit is well-earthed then it should be fine.

Thanks again for all the help, I'll have pictures and videos up as soon as I have my system built.

User avatar
BananaPlug
Super Deluxe Wiggler
Posts: 2584
Joined: Wed Dec 05, 2007 10:37 pm
Location: PHL USA

Post by BananaPlug » Mon Oct 17, 2011 8:52 pm

I was just wondering if there were any major differences between the connectors but it doesn't sound like there are really.
--sigh--

Just take a good look at them. The banana plug & jack have huge areas of contact which wipe themselves clean every time you use them. Compare that to the tiny point of contact of the relatively fragile mini. Banana jacks are immune to the common afflictions of minis.

User avatar
widdly
Super Deluxe Wiggler
Posts: 1095
Joined: Wed Jan 21, 2009 1:31 am
Location: australia

Post by widdly » Mon Oct 17, 2011 9:08 pm

Banana Sockets are cheaper because they are mechanically simpler. They are also much more durable since there is less to go wrong.

You might not care about stackables now, but you will once you run out of multiples. Most banana synths are designed with stackable plugs in mind so there are no multiples. Most 1/4" and minijack systems include multiples but usually not enough.

One of the good things about 1/4" synths is you can use a lot of off-the-shelf 1/4" studio stuff with your synth. Studio Patch bays can be converted into multiples or for making normalised patches. Cheap 1/4" snakes can be used to connect two large enclosures. Cheap 1/4" molded cables for connecting guitar pedals are easily available. Connecting your synth to a mixer or effects processor doesn't require an adaptor. etc.

User avatar
Bricks
paper kettle
Posts: 2004
Joined: Sun May 27, 2007 2:59 am
Location: Hypermagic Mountain, USA

Post by Bricks » Mon Oct 17, 2011 9:27 pm

Banana jacks are so much nicer than minijacks. Worth it for the feel alone, nevertheless ease of stackability and reliability!

User avatar
Kent
Large Member
Posts: 11810
Joined: Thu Mar 06, 2008 10:17 am
Location: Vienna, Austria

Post by Kent » Mon Oct 17, 2011 9:50 pm

I'm rather amazed to hear this sort of question from one who is considering the tackling of designing a modular synth from scratch. What other unknowns must lurk around every corner?

User avatar
Reese P. Dubin
Super Deluxe Wiggler
Posts: 1337
Joined: Wed Dec 17, 2008 12:33 pm
Location: Absolute Elsewhere

Post by Reese P. Dubin » Mon Oct 17, 2011 9:53 pm

In reasonable quantity, banana jacks cost about $.50 each, and will never fail. Most any color length of cable is $5 at Testpath.
Economics are a distant second to the tactile experience.
One vote for bananas every time.

User avatar
megaohm
Super Deluxe Wiggler
Posts: 1897
Joined: Mon Jun 15, 2009 6:11 am
Location: Chicago, IL

Post by megaohm » Tue Oct 18, 2011 12:07 am

southafrica wrote: I was just wondering if there were any major differences between the connectors but it doesn't sound like there are really.
This is just my opinion, I stress, IMO:

3.5mm jacks suck. Some are better than others but it is just a difference between sucks massively and sucks a little.
If someone can contradict the above statements PLEASE hip me to a part # so I can see/try for myself. I would love to release some stuff in euro format but the jacks prevent me from feeling good about (...the PSU/distro system doesn't help either!)

I build and sell modules in MU format that use 1/4" jacks. Switchcraft 112 cost $1.50 or more in quantities of 100 (from Mouser). Kinda expensive. You might think I would say 1/4" jacks are best because it would be self serving. I won't.

Banana jacks are better than either.
As robust or more so.
Many colors.
Economical.
Easily sourced.
Light.
Compact.
Long threaded body can be mounted in a variety of thick materials.
Sealed (3.5mm and 1/4' jacks = holes)-minor point, but still
Any DIY modules that lack labels are still easy to use if you have conventions - blue=CV in, yellow=output, etc.

The only thing I wish I could do with banana jacks is normalization. I use normals a lot in my modules. Since bananas are naturally stackable this is a small issue.

Lack of a ground wire in patch cords is a non-issue when patching within the same synth. In fact, in the majority of cases, you don't even need to bother with a ground wire for patch cords within 3.5mm or 1/4" systems either. When patching into external synths or other devices you will have to connect their grounds together. Simple.
www.MegaOhmAudio.com

Will work for pistachios

User avatar
digital_steve
Muppet
Posts: 1692
Joined: Sat Sep 17, 2011 7:50 pm
Location: Australia

Post by digital_steve » Tue Oct 18, 2011 12:18 am

Who actually creates modules with banana's as standard?
Probably a dumb, newbie question... but anyway

User avatar
decaying.sine
Broken <--> Fixed
Posts: 5394
Joined: Wed Jun 03, 2009 10:05 pm
Location: New Haven, CT USA

Post by decaying.sine » Tue Oct 18, 2011 12:25 am

digital_steve wrote:Who actually creates modules with banana's as standard?
Probably a dumb, newbie question... but anyway
STS Serge
Buchla for CV (tinijax for audio)
Cyndustries
Modcan A
Brian
"I must create a system or be enslaved by another mans; I will not reason and compare: my business is to create." William Blake

"Vactrols ringing, Dude." "Thank you Donny"

User avatar
decaying.sine
Broken <--> Fixed
Posts: 5394
Joined: Wed Jun 03, 2009 10:05 pm
Location: New Haven, CT USA

Post by decaying.sine » Tue Oct 18, 2011 12:27 am

Kent wrote:I'm rather amazed to hear this sort of question from one who is considering the tackling of designing a modular synth from scratch. What other unknowns must lurk around every corner?
I wonder if southafrica is DIYing some modules rather than designing circuits/modules, if that was what you meant.
Brian
"I must create a system or be enslaved by another mans; I will not reason and compare: my business is to create." William Blake

"Vactrols ringing, Dude." "Thank you Donny"

User avatar
iopop
Super Deluxe Wiggler
Posts: 1071
Joined: Wed May 19, 2010 2:11 pm
Location: Helltown, Sweden

Post by iopop » Tue Oct 18, 2011 12:36 am

BugBrand also uses bananas as standard.

User avatar
Kent
Large Member
Posts: 11810
Joined: Thu Mar 06, 2008 10:17 am
Location: Vienna, Austria

Post by Kent » Tue Oct 18, 2011 1:33 am

decaying.sine wrote:
Kent wrote:I'm rather amazed to hear this sort of question from one who is considering the tackling of designing a modular synth from scratch. What other unknowns must lurk around every corner?
I wonder if southafrica is DIYing some modules rather than designing circuits/modules, if that was what you meant.
The brother did state "designing" if indeed that is what HE meant.
:hmm: curious....

User avatar
BugBrand
Knowledge of Bugs
Posts: 7257
Joined: Tue Jul 15, 2008 11:59 am

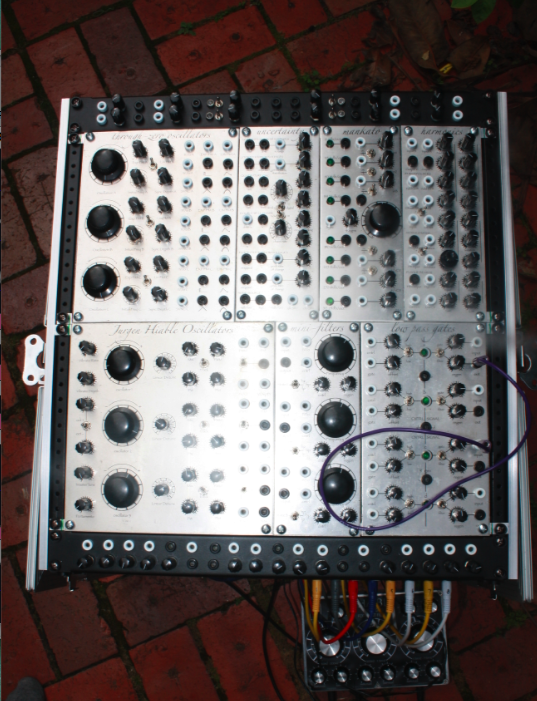

Post by BugBrand » Tue Oct 18, 2011 3:49 am


I posted this a while back.. yes, reliability.

Cost was a big choice factor for me, but also 'FEEL' and colour.

And the fact that you can cheaply and quickly make cables -> I can do something like 60 in an hour. Making jack cables I'd have gone nuts (more nuts?!) after 10 or so...

Pfurmel
Super Deluxe Wiggler
Posts: 1570
Joined: Wed Mar 31, 2010 12:57 pm
Location: Ireland
Contact:

Post by Pfurmel » Tue Oct 18, 2011 8:58 am

Do you have a datasheet or part number for the blue banana jack at the top left in that photo?

User avatar
southafrica
Common Wiggler
Posts: 219
Joined: Thu Oct 13, 2011 11:58 am
Location: Calgary, Canada

Post by southafrica » Tue Oct 18, 2011 8:59 am

Kent wrote:
decaying.sine wrote:
Kent wrote:I'm rather amazed to hear this sort of question from one who is considering the tackling of designing a modular synth from scratch. What other unknowns must lurk around every corner?
I wonder if southafrica is DIYing some modules rather than designing circuits/modules, if that was what you meant.
The brother did state "designing" if indeed that is what HE meant.
:hmm: curious....
Well I am starting by DIYing some basic things like a 555 Pulse Generator, an Atari Punk Console and a Baby 10 Sequencer. From there I'm going to modify them slightly, converting the Baby 10 to a Baby 16, adding a CV IN to the Atari Punk Console and then I'll see where I go from there. So it's a mix of both DIY and designing I suppose.

Kent I'm not sure if you're trying to mock my initial question or not but we all have to start somewhere.

I placed a big Digikey order yesterday and got about a dozen stackable banana cables. I thought about them again and decided they were worth it. I'll post some pics of my modular once it's decent enough. Thanks for all the information everyone.

User avatar
Paradigm X
Super Deluxe Wiggler
Posts: 2019
Joined: Tue Nov 02, 2010 5:43 am

Post by Paradigm X » Tue Oct 18, 2011 9:14 am

Pfurmel wrote:Do you have a datasheet or part number for the blue banana jack at the top left in that photo?
dont want to tread on mr bugs' toes, but in case he doesnt see this message, these are the ones he recommended to me a while back, and they are excellent

http://www.rapidonline.com/Cables-Conne ... cket-83057

Im loving bana plugs/jacks myself. Problem is i want a 5u system, with bananas, which seems a bit non standard. oh well, thats the point of DIY i guess :)

User avatar
Kent
Large Member
Posts: 11810
Joined: Thu Mar 06, 2008 10:17 am
Location: Vienna, Austria

Post by Kent » Tue Oct 18, 2011 9:18 am

No mockery implied or intended, good sir. You choice of using the word "designing" is what raised my point. It would have been more accurate to state that you were building and/or modifying some kits and wanted input as to the pros & cons of differing jack formats.

I was worried as to whether you knew what you were getting into in embarking upon the designing of a synth from scratch.

User avatar
southafrica
Common Wiggler
Posts: 219
Joined: Thu Oct 13, 2011 11:58 am
Location: Calgary, Canada

Post by southafrica » Tue Oct 18, 2011 9:36 am

Kent wrote:No mockery implied or intended, good sir. You choice of using the word "designing" is what raised my point. It would have been more accurate to state that you were building and/or modifying some kits and wanted input as to the pros & cons of differing jack formats.

I was worried as to whether you knew what you were getting into in embarking upon the designing of a synth from scratch.
No worries or hard feelings. Glad to hear it wasn't any elitist mockery, haven't seen any of that on these forums yet which is a really good sign. I want to get to the stage where I can design my own modules, we'll say that's the long term goal. I'm sure my initial question sounded really simple and maybe even obvious to some but I wanted to make sure I had enough information before choosing something as simple as a jack format even. I should have probably worded it more like what you said for clarity.

User avatar
EATyourGUITAR
has no life
Posts: 4576
Joined: Tue Aug 31, 2010 12:24 am
Location: Providence, RI, USA

Post by EATyourGUITAR » Tue Oct 18, 2011 9:56 am

I had the same idea of starting with an APC and a baby 10. the APC is actually a square VCO sync to another square VCO. it would need to have a pitch CV for each VCO. I still use the 555 for square LFO or for generating a clock but I sold that useless APC a while ago. I think I learned more from opamp books and websites than anything else. the 555 has way more uses as a monostable timer than a VCO. I wasted a lot of money on getlofi kits. the boards are crap homemade one sided boards. you could make those your self. its better to just do these projects on the breadboard and move on to the next project without wasting time and money putting the APC in a box

I have lots of those 555 boards that I should probably make a 4 clock module out of. if you want a VCO, I suggest you get a cheap VCO like the MFOS.
WWW.EATYOURGUITAR.COM <---- MY DIY STUFF

User avatar
Luka
Super Deluxe Wiggler
Posts: 5374
Joined: Tue Jul 15, 2008 9:15 am
Location: melbourne

Post by Luka » Tue Oct 18, 2011 10:06 am

Paradigm X wrote:
Im loving bana plugs/jacks myself. Problem is i want a 5u system, with bananas, which seems a bit non standard. oh well, thats the point of DIY i guess :)

:)

like me :)

User avatar
southafrica
Common Wiggler
Posts: 219
Joined: Thu Oct 13, 2011 11:58 am
Location: Calgary, Canada

Post by southafrica » Tue Oct 18, 2011 10:22 am

EATyourGUITAR wrote:I had the same idea of starting with an APC and a baby 10. the APC is actually a square VCO sync to another square VCO. it would need to have a pitch CV for each VCO. I still use the 555 for square LFO or for generating a clock but I sold that useless APC a while ago. I think I learned more from opamp books and websites than anything else. the 555 has way more uses as a monostable timer than a VCO. I wasted a lot of money on getlofi kits. the boards are crap homemade one sided boards. you could make those your self. its better to just do these projects on the breadboard and move on to the next project without wasting time and money putting the APC in a box

I have lots of those 555 boards that I should probably make a 4 clock module out of. if you want a VCO, I suggest you get a cheap VCO like the MFOS.
I'm not planning on buying any kits at all. I've ordered the individual parts I need for my modules. Some of those kits get pricey. Thanks for that link to the MFOS VCO.
