Snarky Tuner ($12 Tuner Mod for Modular)

Post by pulplogic » Tue Dec 25, 2012 11:28 pm

The Snark SN-2 makes a descent little tuner for modular. It costs around $12 on ebay and the mods for adding a 3.5mm phone connection is fairly easy to do. I simply removed the internal piezo sensor and connected directly to its connections.
[video][/video]
Last edited by pulplogic on Thu Dec 27, 2012 12:19 pm, edited 1 time in total.

User avatar
aladan
Desperately Seeking Sondra
Posts: 551
Joined: Tue Feb 14, 2012 12:52 am
Location: Adelaide, Australia

Post by aladan » Tue Dec 25, 2012 11:51 pm

That's way cool... couldn't stop myself, just bought one! :)

User avatar
pulplogic
Wiggling with Experience
Posts: 431
Joined: Sat Oct 09, 2010 10:22 pm
Location: La Mesa
Contact:

Post by pulplogic » Thu Dec 27, 2012 12:34 pm

aladan wrote:That's way cool... couldn't stop myself, just bought one! :)

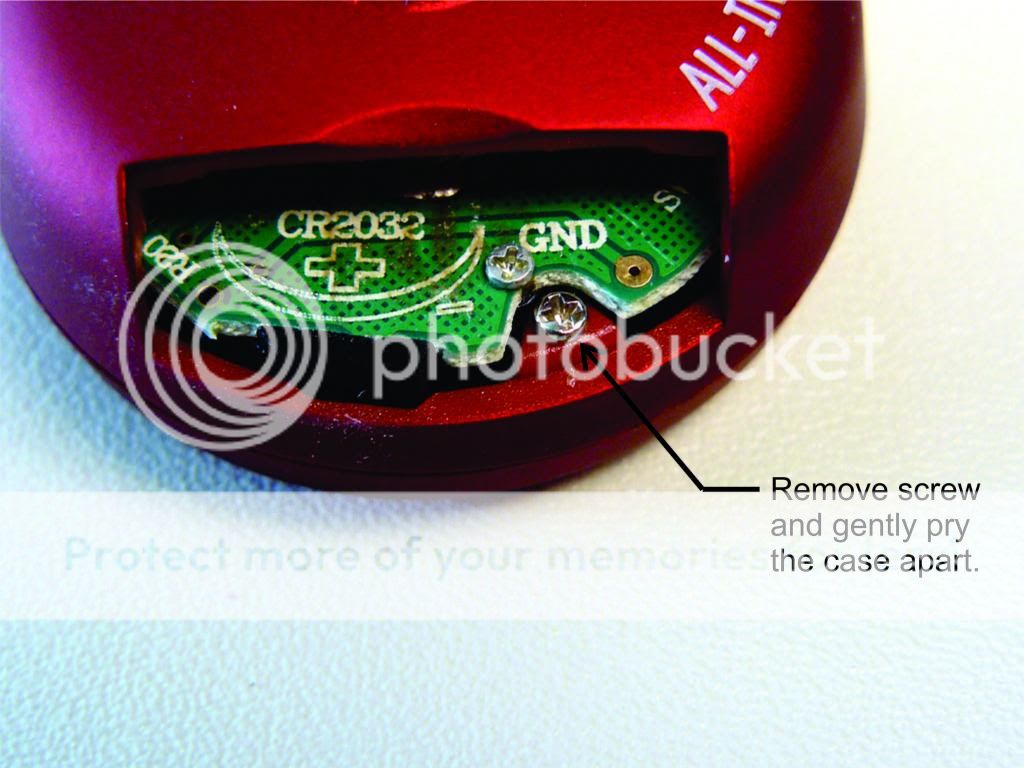

Thanks, here are a couple of assembly pictures:

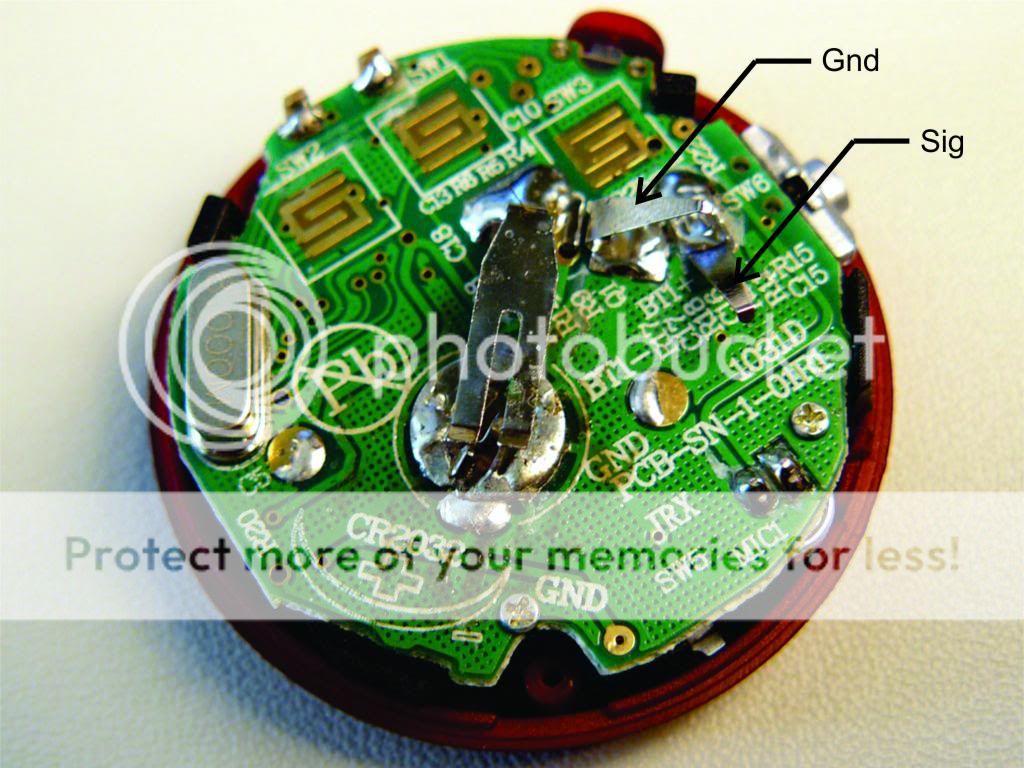

Cut the tabs down so they don't contact the piezo sensor and solder the ground and signal wires.

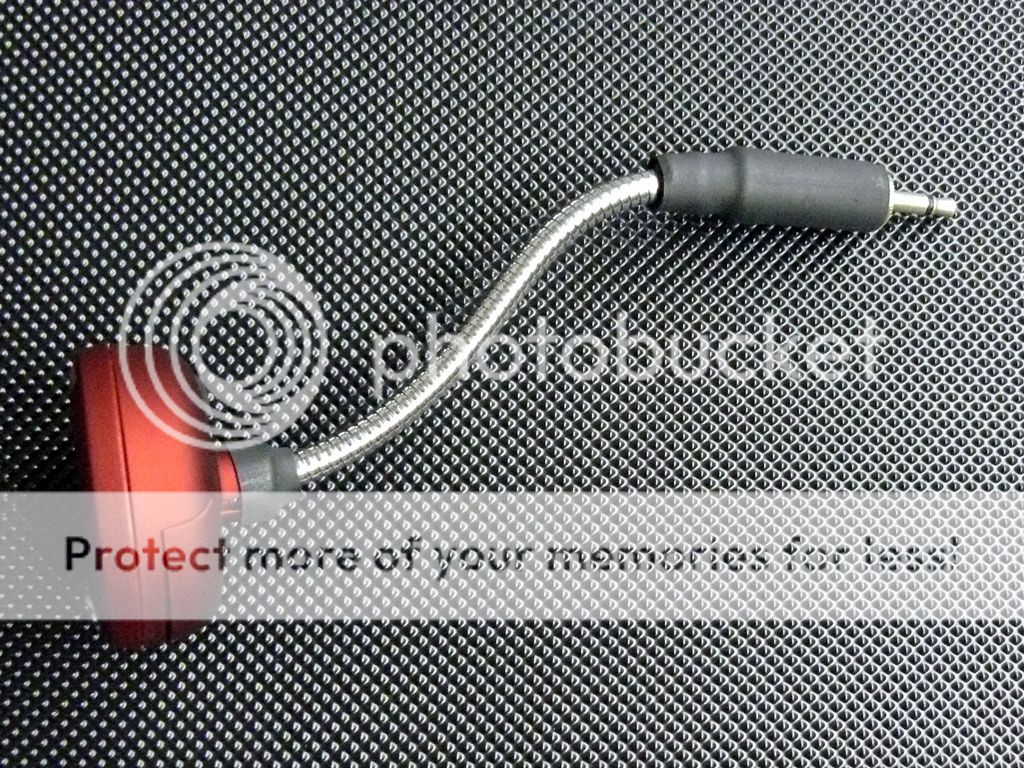

The flex tube was scavenged from a broken usb led lamp. Hot glue secures it into the socket.

User avatar
aladan
Desperately Seeking Sondra
Posts: 551
Joined: Tue Feb 14, 2012 12:52 am
Location: Adelaide, Australia

Post by aladan » Thu Dec 27, 2012 5:07 pm

pulplogic wrote:Thanks, here are a couple of assembly pictures:
Very helpful, thank you!

User avatar
L-1
Super Deluxe Wiggler
Posts: 2180
Joined: Wed Dec 14, 2011 8:20 am
Location: Belarus
Contact:

Post by L-1 » Thu Dec 27, 2012 5:30 pm

Great! Ordered one.

User avatar
pulplogic
Wiggling with Experience
Posts: 431
Joined: Sat Oct 09, 2010 10:22 pm
Location: La Mesa
Contact:

Post by pulplogic » Tue Jan 15, 2013 6:45 pm

Here’s a little more info on how to modify the Snark SN-2 tuner.
[video][/video]

User avatar
aladan
Desperately Seeking Sondra
Posts: 551
Joined: Tue Feb 14, 2012 12:52 am
Location: Adelaide, Australia

Post by aladan » Tue Jan 15, 2013 7:18 pm

Still waiting for mine to arrive in Oz *sigh*

User avatar
makers
Veteran Wiggler
Posts: 679
Joined: Wed Mar 20, 2013 1:54 pm

Post by makers » Wed Nov 27, 2013 3:32 pm

I just did this and it works really well!

User avatar
joshuagoran
Wiggling with Experience
Posts: 363
Joined: Tue Apr 09, 2013 9:28 am
Location: NE Ohio, USA

Post by joshuagoran » Wed Nov 27, 2013 10:22 pm

@makers did you use a USB lamp flex tube, too, or did you figure something else out? I'm glad to see this dug up, looks like a great tool!

User avatar
makers
Veteran Wiggler
Posts: 679
Joined: Wed Mar 20, 2013 1:54 pm

Post by makers » Thu Nov 28, 2013 7:01 am

I used the original arm with a ball joint on each end. I removed the ball from one end so it fit into an 1/8" jack. Then used heat shink to keep those two parts together. The wires had to enter the 1/8" jack through a hole I drilled in the side. Finicky build but it works well with minimal parts. The pitch tracking on the latest model seems very stable.

User avatar
craigwilliamsmusic
Common Wiggler
Posts: 59
Joined: Thu Feb 28, 2013 9:09 am

Post by craigwilliamsmusic » Thu Nov 28, 2013 11:59 am

i built two of these (one for me and one for a friend that lent me his 909 and 101) and they work great.

User avatar
diablojoy
Super Deluxe Wiggler
Posts: 1620
Joined: Fri Jan 22, 2010 9:03 pm
Location: melbourne

Post by diablojoy » Fri Nov 29, 2013 3:37 am

I panelised an SN-8 version
a couple of months back
added a 3.3v regulator so no battery any more
brought all the switches out to the panel and added an in and buffered through jack
really useful module
also bought a couple of even cheaper ENO music ET-33
tuners , i plan to do the same with them.
It probably wont happen today but if it does it definitely wont go smoothly.

User avatar
joshuagoran
Wiggling with Experience
Posts: 363
Joined: Tue Apr 09, 2013 9:28 am
Location: NE Ohio, USA

Post by joshuagoran » Fri Nov 29, 2013 10:59 pm

@diablojoy I would love to see a picture if you get a chance! That sounds like a really graceful setup.

User avatar
squarewavesurfer
Wiggling with Experience
Posts: 269
Joined: Tue Jan 27, 2015 2:43 pm
Location: Canada

Post by squarewavesurfer » Thu Apr 02, 2015 7:09 pm

Thanks for this DIY!

User avatar
ES
Common Wiggler
Posts: 133
Joined: Mon Aug 11, 2014 9:41 am
Location: South London

Post by ES » Thu Apr 02, 2015 8:05 pm

Awesome! Ive been looking for a direct and quick way to tune up my oscillators this is perfect thanks!!!

User avatar
sduck
experimental use of gravity
Posts: 14145
Joined: Wed Feb 18, 2009 6:03 pm
Location: Vortepexaion, TN, USA

Post by sduck » Thu Apr 09, 2015 12:00 pm

Just got a superSnark at guitar center - looking forward to doing this mod thing.
flickr cloud of sound touyube NOT A MODERATOR ANYMORE

User avatar
mothertongue
Common Wiggler
Posts: 142
Joined: Fri Jan 31, 2014 3:58 pm
Location: Poland

Post by mothertongue » Thu Apr 09, 2015 12:07 pm

Sweet! I have an extra Snark tuner in my bag :tu:

User avatar
Mr. Enjin
Common Wiggler
Posts: 60
Joined: Thu Feb 21, 2013 5:43 pm
Location: Dallass Texass

Post by Mr. Enjin » Thu Apr 09, 2015 3:09 pm

That's awesomely simple and cheap! :tu:

User avatar
widdly
Super Deluxe Wiggler
Posts: 1096
Joined: Wed Jan 21, 2009 1:31 am
Location: australia

Post by widdly » Thu Apr 09, 2015 11:52 pm

This is a neat idead but damn you banana plugs!

:sadbanana:

User avatar
jgb
Wiggling with Experience
Posts: 412
Joined: Sun Nov 07, 2010 5:47 am
Location: Göteborg, Sweden

Post by jgb » Fri Apr 10, 2015 2:18 am

Must. Have. Tuner! The same procedure for modding the super snarks?

User avatar
sduck
experimental use of gravity
Posts: 14145
Joined: Wed Feb 18, 2009 6:03 pm
Location: Vortepexaion, TN, USA

Post by sduck » Fri Apr 10, 2015 8:33 am

It looks pretty similar inside. I haven't wired mine up yet, but I'd presume it's the same.
flickr cloud of sound touyube NOT A MODERATOR ANYMORE

User avatar
Mr. Enjin
Common Wiggler
Posts: 60
Joined: Thu Feb 21, 2013 5:43 pm
Location: Dallass Texass

Post by Mr. Enjin » Fri Apr 10, 2015 8:53 am

Just ordered 3 of em from scAmazon for 9.95 a pop...extras..ya know, 'cause it seems there's always at least one person in any band that never fecking has a tuner :doh: [/u]

User avatar
sduck
experimental use of gravity
Posts: 14145
Joined: Wed Feb 18, 2009 6:03 pm
Location: Vortepexaion, TN, USA

Post by sduck » Fri Apr 10, 2015 9:30 pm

Ok, this was a lot easier than I thought it was going to be. First, I scoured the whole house, trying to find some kind of flexi tube I could use, cause that looks really cool. After spending way too much time doing that, I realized I was probably just overthinking things, and that I could just use the clip that comes with it, attach it to a jack of a clipped off patch cord. So I picked out a suitably colored Hosa patch cord and got busy (purple works best! :hmm: ).

Opened it up, removed the piezo, drilled a hole, stripped the wires, soldered them on, put little bits of electrical tape over the business side to prevent accidental contacts on reassembly, re-attached the little button pieces, reassembled the whole thing, it works great!


The super snark has a little spring thing for the ground contact, otherwise the connections are the same as in the pictures and videos above.

This method might not work so well with euro size patch cords, but with 1/4" ones it's fine.
flickr cloud of sound touyube NOT A MODERATOR ANYMORE

User avatar
squarewavesurfer
Wiggling with Experience
Posts: 269
Joined: Tue Jan 27, 2015 2:43 pm
Location: Canada

Post by squarewavesurfer » Sun Apr 12, 2015 10:01 am

sduck wrote:The super snark has a little spring thing for the ground contact, otherwise the connections are the same as in the pictures and videos above.
I should have mentioned that my SN-2 (pictured above) also had a spring for the ground contact. This is probably just the way they are making these tuners now.

User avatar
hangovercat
domestic party animal
Posts: 173
Joined: Mon Apr 09, 2012 5:37 pm
Location: Toronto, Canada

Post by hangovercat » Sun Apr 12, 2015 12:26 pm

That's going to be super handy. Thanks a ton.
