Grayscale alternate panels: Make Noise Mimeophon + X-Pan

Cwejman, Livewire, TipTop Audio, Doepfer etc... Get your euro on!

Moderators: Kent, Joe., analogdigital, infradead, lisa, parasitk, plord

Post Reply
User avatar
squarewavesurfer
Common Wiggler
Posts: 219
Joined: Tue Jan 27, 2015 2:43 pm

Post by squarewavesurfer » Tue Nov 26, 2019 9:25 pm

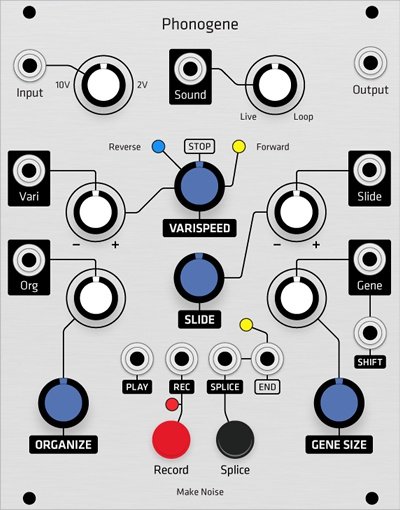

Anyone have a picture of a Grayscale paneled Phonogene in the wild?



User avatar
sempervirent
Super Deluxe Wiggler
Posts: 4250
Joined: Wed Oct 06, 2010 4:40 pm
Location: Republic of Cascadia
Contact:

Post by sempervirent » Tue Nov 26, 2019 9:48 pm

Sure, here are a few user pics from over the years:





I sold out of these a while back but Analogue Haven still has some.

User avatar
sempervirent
Super Deluxe Wiggler
Posts: 4250
Joined: Wed Oct 06, 2010 4:40 pm
Location: Republic of Cascadia
Contact:

Post by sempervirent » Sun Dec 01, 2019 9:59 pm

Finished up the X-Pan design this evening, will finish the Mimeophon design and get these up for preorder in the next day or two.


User avatar
exper
Super Deluxe Wiggler
Posts: 9897
Joined: Fri Apr 22, 2011 6:41 am
Location: Southern NJ

Post by exper » Tue Dec 03, 2019 5:03 pm

Nice, looking forward to the Mimeophone one.

My dream is that you'll eventually do a Rampage panel and perhaps a Natural Gate. Those are the last black/alt colored panels left in my main system, and they drive my OCD nuts. I even love the Natural Gate's design, but I just want aluminum. :despair:
Current system:
http://www.modulargrid.net/e/racks/view/5549
________________________________________

FS/T: Various Euro:
https://www.muffwiggler.com/forum/viewt ... p?t=221800

User avatar
sempervirent
Super Deluxe Wiggler
Posts: 4250
Joined: Wed Oct 06, 2010 4:40 pm
Location: Republic of Cascadia
Contact:

Post by sempervirent » Thu Dec 05, 2019 2:12 am

Thanks for the requests. Those sound like good candidates for one-offs, PM me if you want to discuss further.

Preorders for Mimeophon and X-Pan are open:

https://grayscale.info/panels/make-nois ... -aluminum/
https://grayscale.info/panels/make-nois ... hon-black/
https://grayscale.info/panels/make-noise-xpan-aluminum/
https://grayscale.info/panels/make-noise-xpan-black/

I'll take preorders until the end of December, order panels in early January contingent on preorder totals, and ship later in January. This will most likely be a one-time run so get 'em while you can.

Here's the Mimeophon design:


User avatar
TechForze
Common Wiggler
Posts: 160
Joined: Thu Feb 04, 2016 1:36 pm
Location: NL/EU

Post by TechForze » Thu Dec 05, 2019 3:07 pm

Great! Also ordered a QPAS, thanks again!
Current racks / trade: ModularGrid

User avatar
sempervirent
Super Deluxe Wiggler
Posts: 4250
Joined: Wed Oct 06, 2010 4:40 pm
Location: Republic of Cascadia
Contact:

Post by sempervirent » Mon Dec 09, 2019 2:01 pm

Thanks, appreciated. Will keep this thread updated with ETA info.

User avatar
aintnopicnic
Learning to Wiggle
Posts: 15
Joined: Thu Mar 17, 2016 4:17 pm

Post by aintnopicnic » Tue Dec 10, 2019 1:03 pm

Why did you cover the LEDs in the
silver version?

User avatar
sempervirent
Super Deluxe Wiggler
Posts: 4250
Joined: Wed Oct 06, 2010 4:40 pm
Location: Republic of Cascadia
Contact:

Post by sempervirent » Tue Dec 10, 2019 1:22 pm

Both LEDs are the surface-mount type.

On the black alt panel (as on the original Mimeo panel) the LEDs can shine through the translucent PCB material if the copper and soldermask layers are punched out.

This isn't possible with aluminum so instead there are plastic light pipes (like the ones used on the 4ms SMR for example) to channel the light to the front.

User avatar
transferpoint
butt-hole
Posts: 744
Joined: Wed Mar 11, 2009 1:48 am
Location: Portland, OR

Post by transferpoint » Wed Dec 11, 2019 6:19 pm

Is the black PCB a fairly close match in shade to the default black panels?

For example, I have a black mimeophon that I'm happy with, but I have a silver Maths that I'd be interested in getting a dark panel for.

Would your dark panel Maths match (relatively closely) with Make Noises stock Mimeophon panel?

User avatar
monads
Super Deluxe Wiggler
Posts: 1925
Joined: Thu Mar 26, 2009 11:05 am
Location: Odyssey Island
Contact:

Post by monads » Thu Dec 12, 2019 12:15 am

Can we get some Analogue Systems panels???

User avatar
sempervirent
Super Deluxe Wiggler
Posts: 4250
Joined: Wed Oct 06, 2010 4:40 pm
Location: Republic of Cascadia
Contact:

Post by sempervirent » Thu Dec 12, 2019 12:22 am

transferpoint wrote:Is the black PCB a fairly close match in shade to the default black panels?
They are quite similar, there's always a little variation between batches, even from the same fab, but here's an original X-Pan panel alongside a Maths alt panel:

monads wrote:Can we get some Analogue Systems panels???
I don't own any of their modules but AS seems to have some of the most legible and inoffensive panel designs around... what would be the goal there? Black panels?

I intend to keep up with new Make Noise releases but otherwise I'm not doing much else on the alt panel side of things lately.

User avatar
monads
Super Deluxe Wiggler
Posts: 1925
Joined: Thu Mar 26, 2009 11:05 am
Location: Odyssey Island
Contact:

Post by monads » Thu Dec 12, 2019 12:42 am

sempervirent wrote:
monads wrote:Can we get some Analogue Systems panels???
I don't own any of their modules but AS seems to have some of the most legible and inoffensive panel designs around... what would be the goal there? Black panels?
The old modules lettering scratch/remove very easily and drilled panels holes aren't consistent with the predominate eurorack format. Take a look at their newer panels with improved lettering and panel holes for either their proprietary racks or other. Black panels aren't necessary.
sempervirent wrote: I intend to keep up with new Make Noise releases but otherwise I'm not doing much else on the alt panel side of things lately.
Completely understandable. But maybe I can PM to commission a special few???

User avatar
transferpoint
butt-hole
Posts: 744
Joined: Wed Mar 11, 2009 1:48 am
Location: Portland, OR

Post by transferpoint » Thu Dec 12, 2019 6:57 pm

sempervirent

looks great to me, ordered one! :sb:

User avatar
sempervirent
Super Deluxe Wiggler
Posts: 4250
Joined: Wed Oct 06, 2010 4:40 pm
Location: Republic of Cascadia
Contact:

Post by sempervirent » Fri Dec 13, 2019 1:28 pm

monads wrote:Completely understandable. But maybe I can PM to commission a special few???
Sure, drop me a message and we can discuss.
transferpoint wrote:looks great to me, ordered one!
Thanks, look for tracking info later today.

User avatar
propertyof
Wiggling with Experience
Posts: 312
Joined: Thu Dec 01, 2016 7:58 pm

Re: Grayscale alternate panels: Make Noise Mimeophon + X-Pan

Post by propertyof » Thu Jan 09, 2020 8:29 pm

I stumbled on this pic of old MS-20 with a Japanese overlay, I remember I saw a white color version of the Japanese overlay before somewhere too, and it’s reminds me of Grayscale.



I wonder if Grayscale (or anyone else) ever made (thought about) something like this...
If not maybe someone can make something that people can print by themself at home. I know for eurorack it would be problem since people arranged their modules placement differently, but probably would work for a complete system like the MN Shared System, though I think separated overlay for each module is not a hassle and we just need to tighten it with the bolts/knurlies if needed.

I think it would be cheaper/easier/faster way to simplified complicated imagery for some people.

User avatar
sempervirent
Super Deluxe Wiggler
Posts: 4250
Joined: Wed Oct 06, 2010 4:40 pm
Location: Republic of Cascadia
Contact:

Re: Grayscale alternate panels: Make Noise Mimeophon + X-Pan

Post by sempervirent » Wed Jan 22, 2020 8:38 pm

The black Mimeo/XPan panels are here, I'll be shipping preorders within the next day or two.

The gray ones will be shipping in mid-February, somewhat later than expected.
propertyof wrote:
Thu Jan 09, 2020 8:29 pm
I wonder if Grayscale (or anyone else) ever made (thought about) something like this...
A company called Oversynth is making some overlays like this: https://oversynth.com

Not specifically focused on modular gear (though some of the synths like the Mother 32 are "modules" too).

Maybe they'd do something custom for you.
